A return spring is included in the actuator. Do not use an additional return spring.

(Low force return springs that may be located in an engine’s valve cover usually

don’t affect EPG performance.)

Make sure that the actuator is capable of moving the fuel control to the maximum

and minimum limits. Let the fuel control limit actuator travel. Set the linkage so

that the actuator is just above minimum when the fuel control is at its minimum

stop and (except for Detroit Diesel engines) so that the actuator is just below

maximum when the fuel control is at its maximum stop. We recommend that

Woodward installation kits be used for Detroit Diesel engines.

Use good rod end connectors. The link connecting the actuator lever to the fuel

control lever must not be so long that it flexes when the prime mover is running.

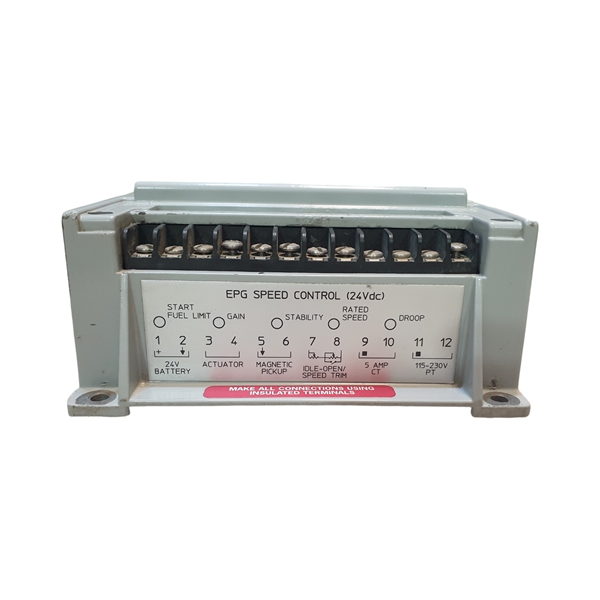

Installing the Magnetic Pickup

Mount the magnetic pickup through a housing or rigid bracket. Make sure that the

sensed gear is of magnetic material. The gap between the pickup and the

outside diameter of the gear should be set to approximately 1.0 mm (0.04”) at the

closest point (radial runout). Using the pickup with small gears may require

spacing as close as 0.25 mm (0.010”).

If you cannot measure the gap directly, it can be set in this manner: with the

prime mover shut down, turn the pickup in (clockwise) until it touches the outside

diameter of a tooth. Then back out the pickup (counterclockwise) approximately

three-quarters of a turn. Run the gear slowly through 360 degree rotation to

check the clearance of the pickup. When the gap is set, tighten the jam nut

securely against the housing or bracket.

The standard pickup models require mating connectors, MS 3102R-18-3P. The

connectors are not furnished with the pickup, but may be ordered from

Woodward if desired. See manual 82510, Magnetic Pickups and Proximity

Switches for Electronic Controls, for more information
