5461-290 WOODWARD

The wrong voltage can damage the control. When replacing a

control, check the power supply, battery, etc., for the correct voltage

as indicated on the name tag on the control. Both high-voltage and

low- voltage models of 2301A speed controls are available. The lowvoltage model will be damaged if connected to a high-voltage supply.

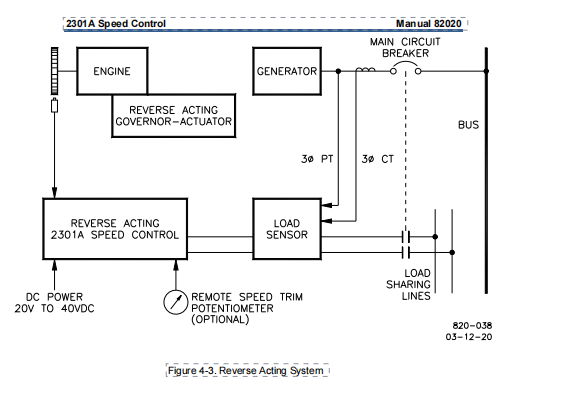

The following troubleshooting guide is an aid in isolating trouble to the control

box, actuator, plant wiring, or elsewhere. The guide assumes that the system

wiring, soldering connections, switch and relay contacts, and input and output

connections are correct and in good working order. Make the checks in the order

indicated.

The high-voltage model will not operate with a low-voltage supply.

Symptom Cause Remedy

Prime mover will not

start. Actuator not

moving to start-fuel

position.

DC supply voltage polarity

reversed, no supply voltage, or

supply voltage is low.

Check for supply voltage within limits indicated on

control name tag. Reverse leads if dc polarity is

incorrect.

Actuator not responding to input

signal from control.

NOTE

Hydraulic actuators must have oil

pressure and either gear rotation

or oil motor rotation to operate.

If there is a voltage output at terminals 9 and 10,

but the actuator does not move, the wiring to the

actuator should be checked for opens or shorts.

With the EG3P actuator, remember that terminals C

and D of the mating plug must be jumpered.

Coil resistance in a Woodward actuator with

terminals 9 and 10 disconnected, is about 35 W.

Prime mover will not

start. Actuator not

moving to start-fuel

position.

Start fuel limit set too low. Turn start fuel limit cw until prime mover starts.

Check actuator and linkage for proper installation

and operation. Problems may be oil supply,

direction of rotation, insufficient drainage, linkage,

worn actuator components, or improper adjustment.

No actuator voltage at terminals 9

and 10 while cranking.

Stop cranking. Check for shorted or grounded

actuator leads by removing wires to terminals 9 and

10. Close terminal 4, short terminal 11 to 12. Check

for 18 to 22 volts at terminals 9 and 10 for forward

acting controls and 0 to 1 volts for reverse acting

controls.

While cranking, check for at least 1 Vrms at

terminals 7 and 8, and at least 30 to 80 Hz.

If these readings are not available close terminal 4

to override failed-speed signal while cranking.

MPU sensor spaced too far from gear. Make sure

there are no metal chips on end of pickup. Check

MPU wiring and shields.

Speed setting too low on initial start. Control may

be set for the wrong speed range. Check speed

sensor frequency versus control part number.

Speed setting may be lower than cranking speed.

Control should be set for rated speed. Increase

RATED SPEED setting clockwise (cw).

Be sure and return rated speed setting full ccw if

adjusting cw does not produce the correct output.
