5450-106 WOODWARD

Speed Control

The basic speed control components and connections are shown in Figure 1-1.

There are no mechanical drive or hydraulic connections. All input power comes

from the battery. The speed control compares the actual speed with the desired

speed. It then calculates an error signal and drives the actuator in the increase or

decrease fuel direction to correct prime mover speed.

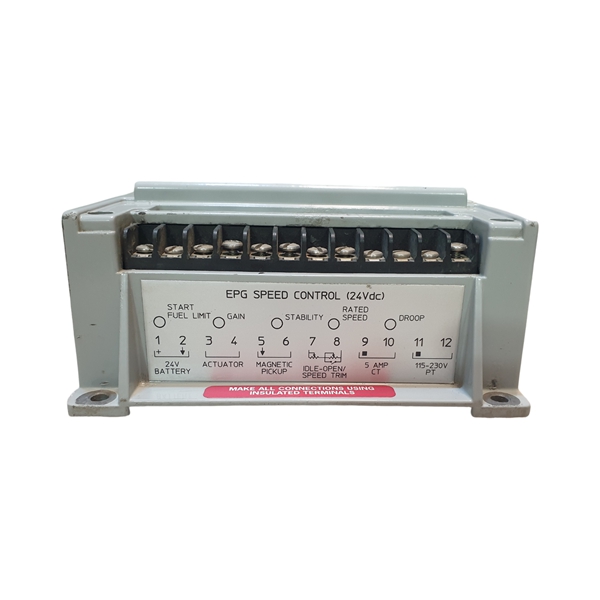

Figure 4-1 shows the Electrically Powered Governor in more detail. The speed

control is housed in a die-cast aluminum enclosure.

The EPG has two control loops. The speed loop ensures prime mover speed

remains constant. The current loop ensures proper drive to the actuator.

Speed Loop

The speed loop controller has two inputs: the desired speed (speed reference

signal) and the actual speed (the speed sensor signal). It compares the two and

calculates an error signal which includes dynamic response considerations. Gain

and stability adjustments tailor the governor’s response to the requirements of

the specific prime mover. Rated speed is set by the rated speed pot and, if

attached, a speed trim pot. The idle reference is controlled by an external idle

speed pot. Rated speed should be set before idle speed. Speed sensor output is

a voltage proportional to magnetic pickup frequency. The frequency range of the

magnetic pickup is set by an internal resistor. The specific frequency range of a

specific EPG Speed Control is indicated by the part number of the speed control.

Current Loop

The current loop error signal can be considered a command for the correct

amount of actuator current.

The actuator’s controller circuit compares actual current (from the current sensor

circuit) to the desired current level (from the speed loop controller) and generates

a current loop error signal. To make the current driver efficient, it is operated as a

switch. Actuator current is changed by changing the duty cycle. The pulse width

modulator converts the current loop error signal from a dc voltage to a switching

signal. For this reason measurements of speed control output [3 (+) and 4 (–)]

indicate only general conditions. Excessive currents are prevented from flowing

through the actuator coil by the energy limiter. It prevents the actuator from

overheating but allows enough current to keep the actuator at the maximum fuel

position.

The auxiliary input is jumpered except when a Load Sensor is added for

paralleled generator applications. There is a failsafe circuit which senses MPU

frequency and forces the pulse width modulator input to zero if the MPU

frequency or voltage are below acceptable limits, as they would be if an MPU

wire broke.
