6ES7322-1BH01-0AA0 SIEMENS

Data sheet 6ES7322-1BH01-0AA0

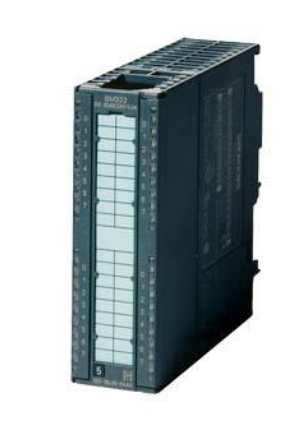

SIMATIC S7-300, Digital output SM 322, isolated, 16 DO, 24 V DC,

0.5A, 1x 20-pole, Total current 4 A/group (8 A/module)

Switching capacity of the outputs

● on lamp load, max. 5 W

Load resistance range

● lower limit 48 Ω

● upper limit 4 kΩ

Output voltage

● for signal "1", min. L+ (-0.8 V)

Output current

● for signal "1" rated value 0.5 A

● for signal "1" permissible range for 0 to 40 °C,

min.

5 mA

● for signal "1" permissible range for 0 to 40 °C,

max.

0.6 A

● for signal "1" permissible range for 40 to 60 °C,

min.

5 mA

● for signal "1" permissible range for 40 to 60 °C,

max.

0.6 A

● for signal "1" minimum load current 5 mA

● for signal "0" residual current, max. 0.5 mA

Output delay with resistive load

● "0" to "1", max. 100 µs

● "1" to "0", max. 500 µs

Parallel switching of two outputs

● for uprating No

● for redundant control of a load Yes

Switching frequency

● with resistive load, max. 100 Hz

● with inductive load, max. 0.5 Hz

● with inductive load (acc. to IEC 60947-5-1,

DC13), max.

0.5 Hz

● on lamp load, max. 10 Hz

Total current of the outputs (per group)

horizontal installation

— up to 40 °C, max. 4 A

— up to 60 °C, max. 3 A

vertical installation

— up to 40 °C, max. 2 A

Cable length

● shielded, max. 1 000 m

● unshielded, max. 600 m

Interrupts/diagnostics/status information

Alarms No
