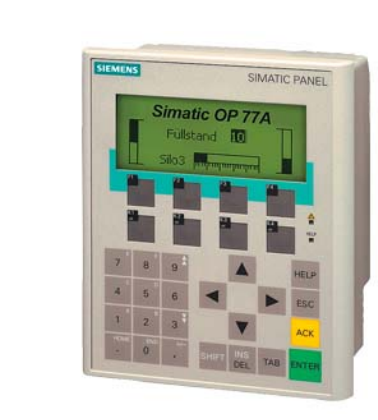

6AV6641-0BA11-0AX1 SIEMENS

SIMATIC Operator Panel OP 77A LC display backlit, 4.5" display

graphics-capable, MPI-/PROFIBUS-DP interface to 1.5 MB,

configurable from WinCC flexible 2004 Compact HSP contains open

source software, which is provided free of charge. see enclosed CD

— Number of analog messages 1 000

● Telegram message procedure Alarm S No

● System messages HMI Yes

● System messages PLC Yes

● System messages, other (SIMATIC S7,

Sinumerik, Simotion, etc.)

No

● Number of characters per message 80

● Number of process values per message 8

● Acknowledgment groups Yes

● Message indicator No

● acoustic feedback No

● First/last value Yes

Recipe management

● Number of recipes 5

● Data records per recipe 20

● Entries per data record 20

● Recipe memory 32 KB integrated Flash

Variables

● Number of variables per device 1 000

● Number of variables per screen 30

● Limit values Yes

● Multiplexing Yes

● Structures No

Images

● Number of configurable images 500

● Permanent window/default Yes

● Start screen configurable Yes

● Image selection by PLC Yes

● Image number in the PLC Yes

Image objects

● Text objects 1,000 text elements

● Number of I/O fields per image 30

● Index of screen context No

● Return Yes

● Graphics object Bit maps, icons, icon (full-screen)

— Icons 1

— Icon (full screen) 1

Complex image objects

● Status/control Not possible

● dynamic objects Bar graphs

● Bar graphs
