Brand：Rexroth
Model number：MAC063B-0-JS-1-C/095-A-1
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: Germany
Price: Please contact us
Product weight：1.32kg
hipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account

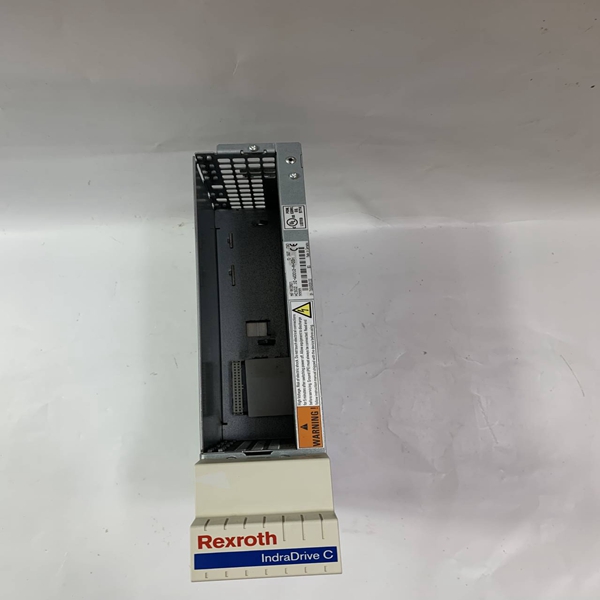

MAC063B-0-JS-1-C/095-A-1 Rexroth Industrial control module spot
er sections for converters - IndraDrive C
5.1 Types
Converter Types Features
HCS02 W0012
W0028
W0054
W0070
Compact modular design
1.5 kW to 11 kW
Continuous currents up to 28 A
HCS03 W0070
W0100
W0150
W0210
W0280
W0350
Compact modular design
25 kW to 120 kW
Continuous currents up to 200 A
Tab. 5-1: Types
5.2 HCS02 Power sections
5.2.1 Brief description, use and design
Short description The compact converters HCS02 are part of the Rexroth IndraDrive C product
range and are used to operate single axes.
Use The different types are used as follows:
Type Use
HCS02.1E-Wxxxx-NNNN
HCS02.1E-Wxxxx-NNNV
Operation of a three-phase a.c. motor
(asynchronous or synchronous motor) in
the power range from 1.5 kW to 11 kW.
HCS02.1E-Wxxxx-LxxN
Load-dependent fan control
Applications with operation at partial load
and requirement of a low degree of noise
development.
Tab. 5-2: Usage of HCS02
DOK-INDRV*-HMV-S-D+HCS-PR04-EN-P Bosch Rexroth AG 35/425
R
