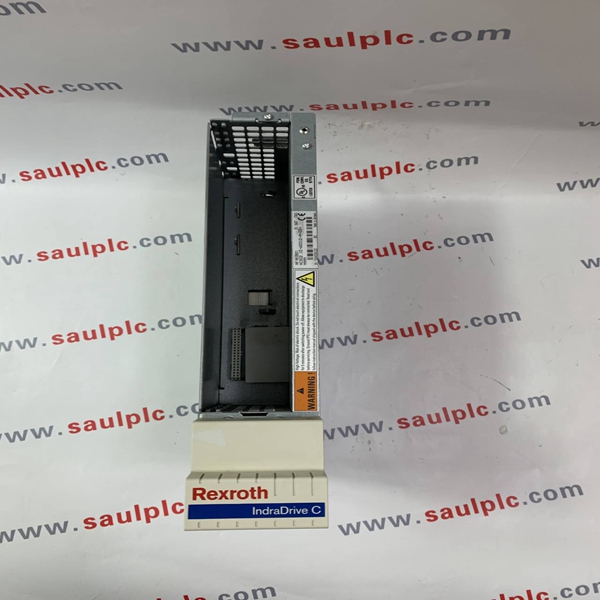

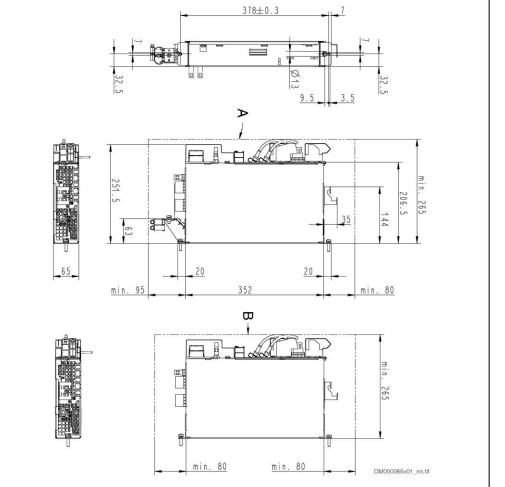

HCS21E-W0012-A-03-NNNN REXROTH

In addition, take the power at the braking resistor and the power

consumption of the control section into account. Both powers are

not contained in the figure.

Control voltage supply data

Description Symbol Unit HCS02.1EW0012-_-03

HCS02.1EW0028-_-03

HCS02.1EW0054-_-03

HCS02.1EW0070-_-03

Control voltage input1) UN3 V 24 ± 20%

Control voltage when using motor

holding brake with motor cable

length less than 50 m (HCS01

less than 40 m)2)

UN3 V 24 ± 5 %

Control voltage when using motor

holding brake with motor cable

length more than 50 m (HCS01

more than 40 m)3)

UN3 V 26 ± 5 %

Max. inrush current at 24 V supply IIN3_max A 2.80

Pulse width of IEIN3 tEIN3Lade ms 15

Input capacitance CN3 mF 0.56

Rated power consumption control

voltage input at UN3

4) PN3 W 12 14 23

Last modification: 2010-08-04

1) 2) 3) Observe supply voltage for motor holding brakes

4) See information on "Rated power consumption control voltage

input at UN3"

Tab. 5-7: HCS - Control voltage supply data

Rated power consumption control voltage input at UN3

Plus motor holding brake and control section, plus safety option

HCS02/HCS03 converters of the design "-N**V" have an integra‐

ted 24V supply. In applications without motor holding brake and

with CSB01.1N-FC control section, they can be operated without

external 24V supply. Observe the notes on project planning for

the mains connection.

Mains voltage

Mains voltage supply data

Description Symbol Unit HCS02.1EW0012-_-03

HCS02.1EW0028-_-03

HCS02.1EW0054-_-03

HCS02.1EW0070-_-03

Mains frequency fLN Hz 50...60

Mains frequency tolerance Hz ± 2

Maximum allowed mains frequen‐

cy change ΔfLN/Δt Hz/s -

Rotary field condition None

Short circuit current rating SCCR A rms 42000

Last modification: 2013-11-26
