CSB01.1C-PB-ENS-NNN-S-NN-F Rexroth

CSB01.1C-PB-ENS-NNN-S-NN-F Rexroth  Industrial control module spot

er sections for converters - IndraDrive C

5.1 Types

Converter Types Features

HCS02 W0012

W0028

W0054

W0070

Compact modular design

1.5 kW to 11 kW

Continuous currents up to 28 A

HCS03 W0070

W0100

W0150

W0210

W0280

W0350

Compact modular design

25 kW to 120 kW

Continuous currents up to 200 A

Tab. 5-1: Types

5.2 HCS02 Power sections

5.2.1 Brief description, use and design

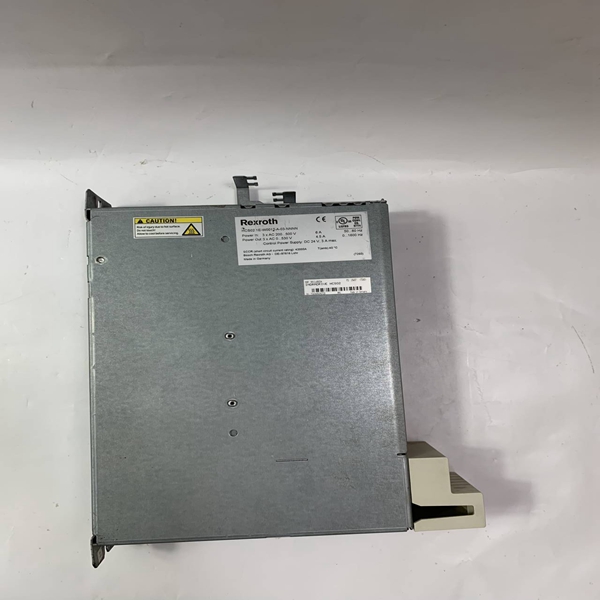

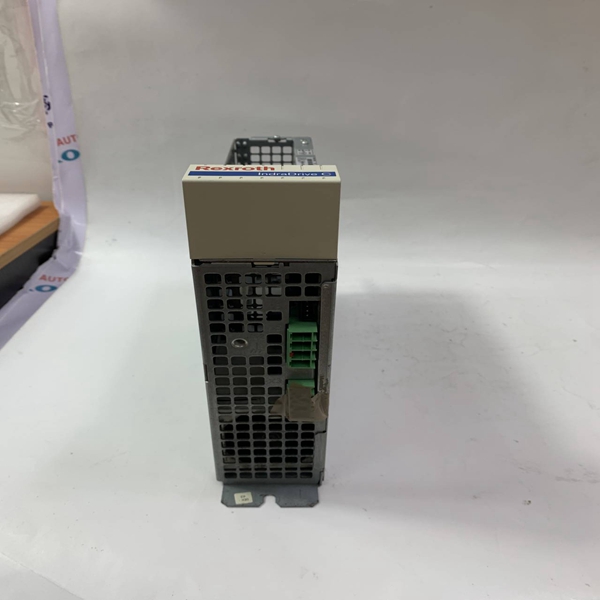

Short description The compact converters HCS02 are part of the Rexroth IndraDrive C product

range and are used to operate single axes.

Use The different types are used as follows:

Type Use

HCS02.1E-Wxxxx-NNNN

HCS02.1E-Wxxxx-NNNV

Operation of a three-phase a.c. motor

(asynchronous or synchronous motor) in

the power range from 1.5 kW to 11 kW.

HCS02.1E-Wxxxx-LxxN

Load-dependent fan control

Applications with operation at partial load

and requirement of a low degree of noise

development.

Tab. 5-2: Usage of HCS02

DOK-INDRV*-HMV-S-D+HCS-PR04-EN-P Bosch Rexroth AG 35/425
