Brand： SST Model number： SST- ESR2-CLX-RLL
Colour：new Warranty: 12 months
Lead Time：3-day working day Country of origin: U S A
Price: Please contact us Product weight：0.22kg
hipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Servce: Professional Sales provides 24 hours /7 days online service

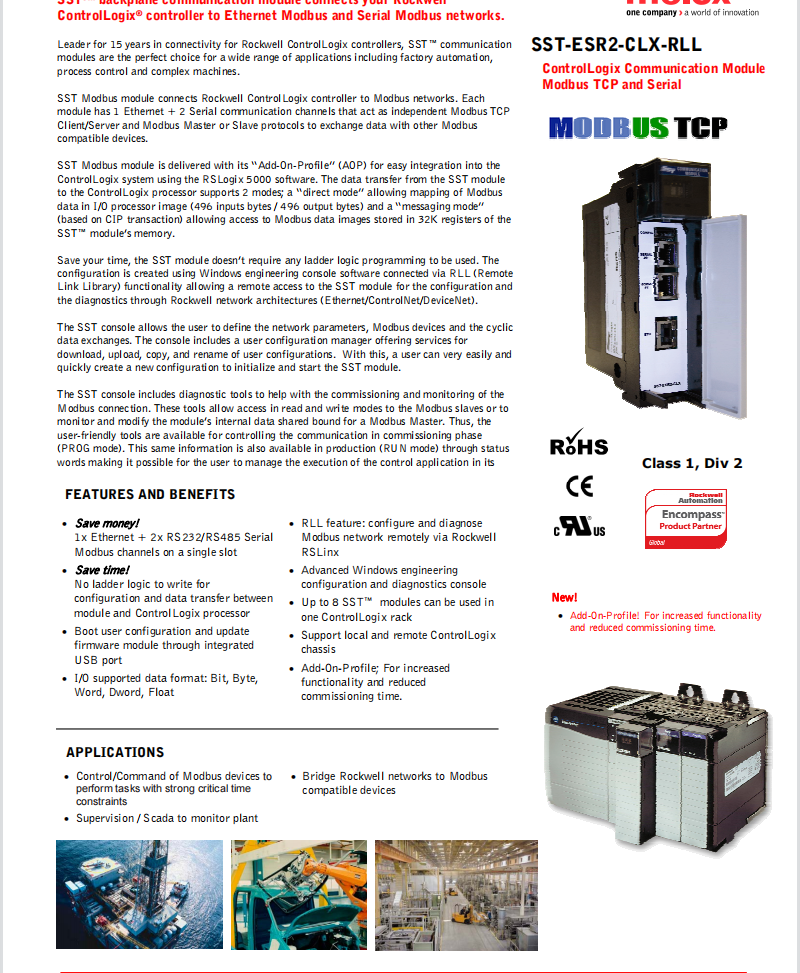

SST- ESR2-CLX-RLL Industrial control module machine spare parts
Leader for 15 years in connectivity for Rockwell ControlLogix controllers, SST™ communication
modules are the perfect choice for a wide range of applications including factory automation,
process control and complex machines.
SST Modbus module connects Rockwell ControlLogix controller to Modbus networks. Each
module has 1 Ethernet + 2 Serial communication channels that act as independent Modbus TCP
Client/Server and Modbus Master or Slave protocols to exchange data with other Modbus
compatible devices.
SST Modbus module is delivered with its “Add-On-Profile” (AOP) for easy integration into the
ControlLogix system using the RSLogix 5000 software. The data transfer from the SST module
to the ControlLogix processor supports 2 modes; a “direct mode” allowing mapping of Modbus
data in I/O processor image (496 inputs bytes / 496 output bytes) and a “messaging mode”
(based on CIP transaction) allowing access to Modbus data images stored in 32K registers of the
SST™ module’s memory.
Save your time, the SST module doesn’t require any ladder logic programming to be used. The
configuration is created using Windows engineering console software connected via RLL (Remote
Link Library) functionality allowing a remote access to the SST module for the configuration and
the diagnostics through Rockwell network architectures (Ethernet/ControlNet/DeviceNet).
The SST console allows the user to define the network parameters, Modbus devices and the cyclic
data exchanges. The console includes a user configuration manager offering services for
download, upload, copy, and rename of user configurations. With this, a user can very easily and
quickly create a new configuration to initialize and start the SST module.
The SST console includes diagnostic tools to help with the commissioning and monitoring of the
Modbus connection. These tools allow access in read and write modes to the Modbus slaves or to
monitor and modify the module’s internal data shared bound for a Modbus Master. Thus, the
ABB 3BDH000530R1
5136-PFB SST
SST-PFB-PLC5 SST
5136-PFB-VME SST
5136-PFB-104 SST
SST-IBS-CLX-RLL SST
5136-DNP-CPCI SST
5136-PBMS-ISA SST
5136-DNP-PCI SST
SST-DN3-PCI SST
SST-ESR2-CPX-P SST
SST-PB3-REM SST
SST-PFB-PLC5 SST
ST-PFB--PLC5 SST
SST-PB3M-CPX SST
SST-PFB3-VME-2 SST
SST-PFB-CLX SST
5136-CN-VME SST
XL-S-2 SST
SST-PB3-VME SST
SST-PFB-PLC5 SST
5136-PFB SST
5136-PFB-VME SST
SST-PFB-SLC SST
5136-DNP SST
SST-ESR2-CLX-RLL SST
You are welcome to make an inquiry
