MC07A008-2B1-4-10 SEW Input module Brand new

if possible.control cables and supply cables should intersect at nght angles.

 You can also use earthed sheet-metal ducts or metal pipes to sheld the cables.

ITsystoms

. SeW recommends using earth-leakage monitors with a puse code measuring

This avolds miis-tnpping of the earth-eakage montor due to the earth capadtance of

process involtage supply systems with a non-arthed star point (T systems).

the nverer.

Contactor

Only use contactors in utiization category AC-3(EC158-1)

Cross sections

Supply sstem lead: Cross section according to nominal input current lstem at

rated loed

Motor cabie:Cross soction according to rated output currentiy

Electonics cables:

Maxiimum 1.5 mm (ANG16) wihout conductorend sleeves

Maximum 1.0 mm(AWG17withconductor end sleeves

Line lengths for

The line lengths for size 0 are independent of the PWM frequency.The motor leads for

single drives

sizes 1 through 4 dopend on the frequency. The permitted motor cable lengths are listed

in Sec. "Prolect Planning"of the MOMTRAC-07 systemmanual.

Unit output

.Crly conneat anohmicnductive load (motor do notconnect a capacitive load!

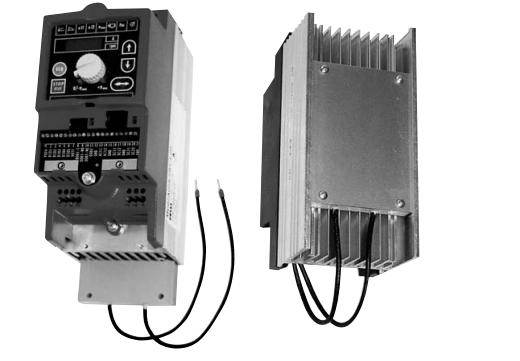

Connection Brak..Shorten the cables to the required length.

ingresistor

Binary inputs /

. Binary outputs are short-circuit proof and interference-voltage-proofup to

binary outous

36 V. They can suffer ireparable damage from higher external voltages!

Intererence

.Use shielded molor cables or HDoutput chokes for EMC-compliant installation.

emission

Swichad

. Use suppressors to suppress inererence on contacors. relays, solenold vaives.

inductances

eic

.The minimum deance to the invetershoud be150mm

Line iter

MOvITRAc"07 frequency inverters have an integrated input fiter as standard. They

comply with the following lmit value class to EN 55011 on the line side without further

mnasures

B:1-phase connection

· A: 3-phase connecion

- 230V:up to 7.5kW

- 400/500V:up to 11 kw
