E300 04380A BEIJER Input module Brand new

EXTER K30m

To replace the display you will need a new display including display frame, see the

Available Spare Parts section.

Follow the steps below:

1. Power off the operator panel.

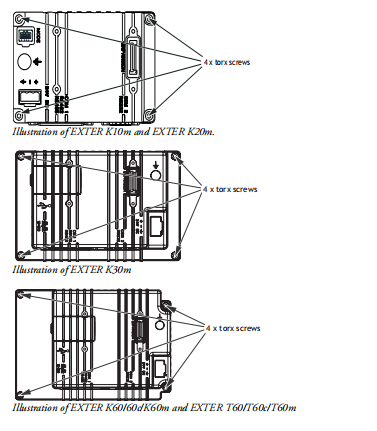

2. Follow the instructions under Replacing the Rear Cover to remove the rear cover.

3. Unlock the two flex cable connectors by pressing the connector flanges towards

the cable and disconnect the flex cables from the power card.

The connectors must be unlocked on both sides before removing the cables.

4. Gently press the power card towards the top of the panel as shown in the illustration above to release the power card from the power card holders.

Then tilt the bottom of the card away from you.

5. Disconnect the two flex cables and the plain cable on the back side of the power

card and then remove the power card.

6. Insert the two screwdrivers between the display frame and the aluminum casing

illustrated below. Press and bend gently on the display frame to unlock the frame

and tilt up the display frame.

7. Mount the new display unit.

8. Re-assemble the panel in reverse order.
