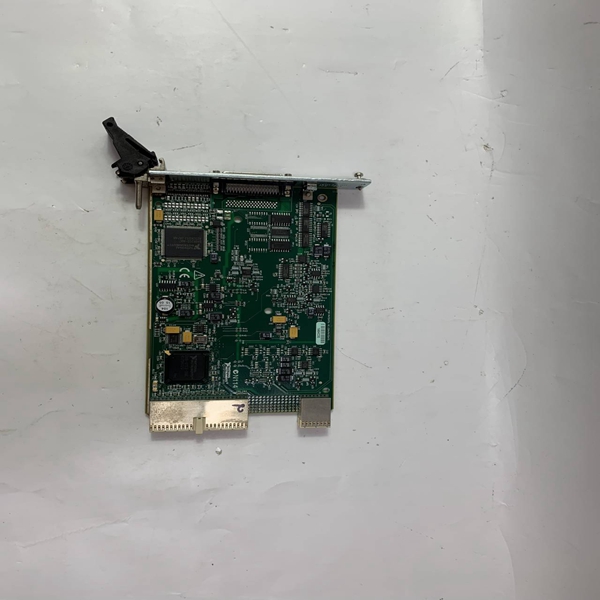

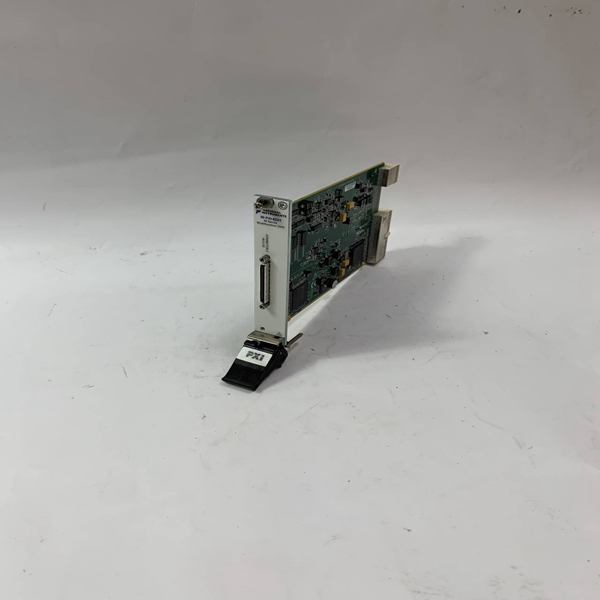

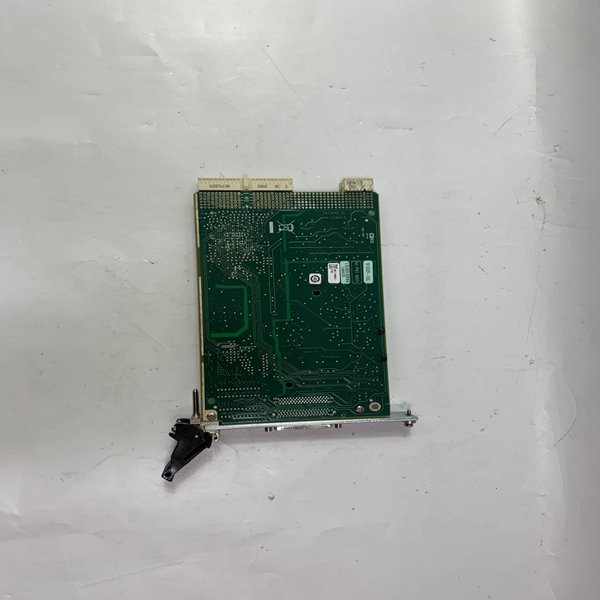

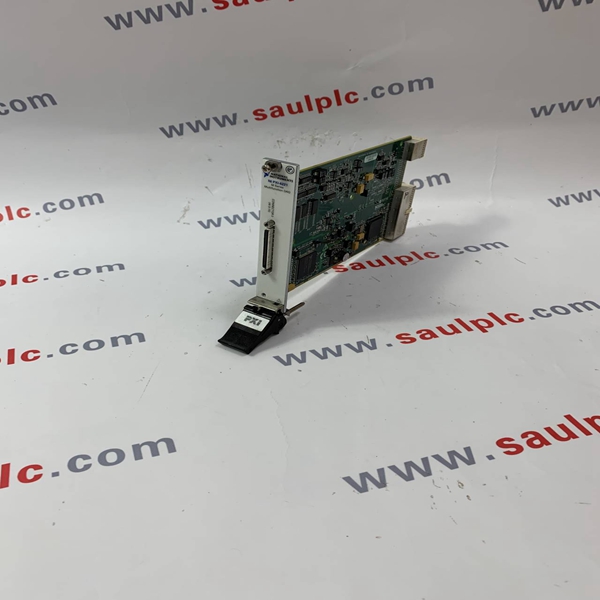

PXI-6221 National Instruments

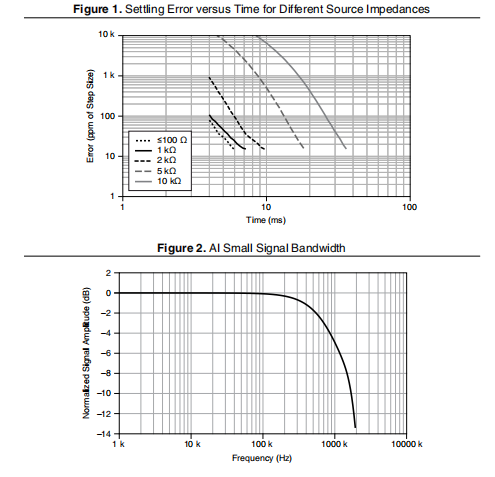

Absolute accuracy at full-scale numbers is valid immediately following internal calibration

and assumes the device is operating within 10 °C of the last external calibration.

AbsoluteAccuracy = Reading · (GainError) + Range · (OffsetError) + NoiseUncertainty

GainError = ResidualAIGainError + GainTempco · (TempChangeFromLastInternalCal)

+ ReferenceTempco · (TempChangeFromLastExternalCal)

OffsetError = ResidualAIOffsetError + OffsetTempco ·

(TempChangeFromLastInternalCal) + INLError

NoiseUncertainty =

Random Noise ڄ 3

100 for a coverage factor of 3 σ and averaging

100 points.

AI Absolute Accuracy Example

Absolute accuracy at full scale on the analog input channels is determined using the following

assumptions:

• TempChangeFromLastExternalCal = 10 °C

• TempChangeFromLastInternalCal = 1 °C

• number_of_readings = 100

• CoverageFactor = 3 σ

For example, on the 10 V range, the absolute accuracy at full scale is as follows:

GainError = 75 ppm + 25 ppm · 1 + 5 ppm · 10 = 150 ppm

OffsetError = 20 ppm + 57 ppm · 1 + 76 ppm = 153 ppm

NoiseUncertainty = 244 µ

100

ڄ ܸ

3

 = 73 µV

AbsoluteAccuracy = 10 V · (GainError) + 10 V · (OffsetError) + NoiseUncertainty =

3,100 µV

Analog Output

Number of channels 2

DAC resolution 16 bits

DNL ±1 LSB

Monotonicity 16 bit guaranteed

Maximum update rate

1 channel 833 kS/s

2 channels 740 kS/s per channel

Timing accuracy 50 ppm of sample rate

Timing resolution 50 ns

Output range ±10 V
