PCI-1200 National Instruments Analog Output Signal Connections

Brand： National Instruments Model number：PCI-1200

Colour：new Warranty: 12 months

Lead Time：3-day working day Country of origin: USA

Price: Please contact us Product weight：0.155kg

hipping Port: China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

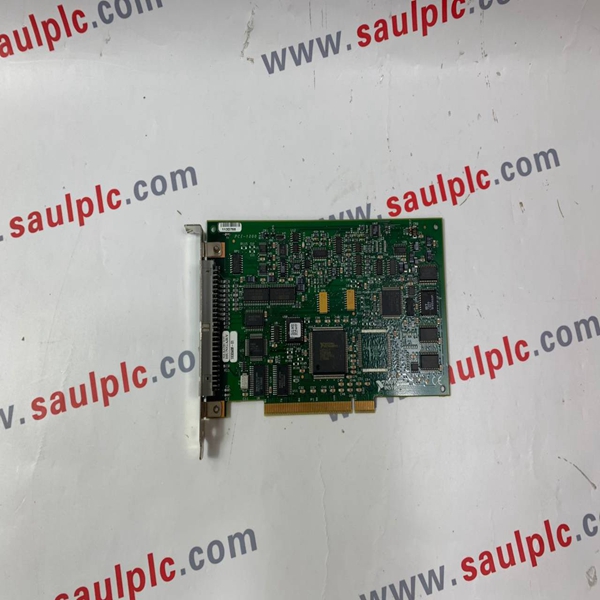

PCI-1200 National Instruments Processor module

Inquire Now Next Product

Additional Information:

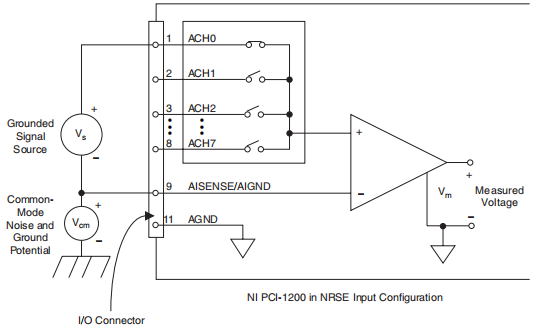

Figure 3-6 shows how to connect a grounded signal source to an

NI PCI-1200 configured in NRSE input mode. Configuration instructions

are included in the Analog I/O Configuration section of Chapter 2,

Installing and Configuring the NI PCI-1200.

PCI-1200 National Instruments

The 100 kΩ resistors shown in Figure 3-4 create a return path to ground for

the bias currents of the instrumentation amplifier. If there is no return path,

the instrumentation amplifier bias currents charge stray capacitances,

resulting in uncontrollable drift and possible saturation in the amplifier.

Typically, values from 10 to 100 kΩ are used.

A resistor from each input to ground, as shown in Figure 3-4, provides bias

current return paths for an AC-coupled input signal.

If the input signal is DC-coupled, you need only the resistor that connects

the negative signal input to ground. This connection does not lower the

input impedance of the AI channel.

Single-Ended Connection Considerations

Single-ended connections are those in which all NI PCI-1200 AI signals are

referenced to one common ground. The input signals are tied to the positive

input of the instrumentation amplifier, and the common ground point is tied

to the negative input of the instrumentation amplifier.

When the NI PCI-1200 is configured for a single-ended input mode

(NRSE or RSE), eight AI channels are available. Use single-ended input

connections when the following conditions are met by all input signals:

• Input signals are high level (greater than 1 V).

• Leads connecting the signals to the NI PCI-1200 are less than 10 ft.

• All input signals share a common reference signal (at the source).

If any of the preceding criteria is not met, use the DIFF input configuration.

You can software configure the NI PCI-1200 for two types of single-ended

connections, RSE configuration and NRSE configuration. Use the RSE

configuration for floating signal sources; in this case, the NI PCI-1200

provides the reference ground point for the external signal. Use the NRSE

configuration for ground-referenced signal sources; in this case, the

external signal supplies its own reference ground point and the

NI PCI-1200 should not supply one.
