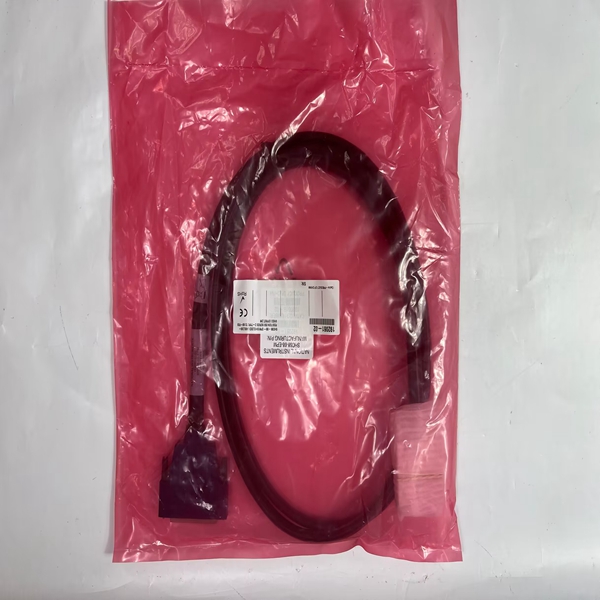

NI 6585  National Instruments Spare parts in stock

NI 6585 National Instruments Spare parts in stock

Brand: National Instruments     Model number:NI 6585

Colour:new                  Warranty: 12 months

Lead Time:3-day working day   Country of origin: USA

Price: Please contact us         Product weight:0.22kg

hipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

NI 6585  National Instruments Spare parts in stock

SCXI-1162HV   National Instruments    Industrial control module spot

Table 2. AO Absolute Accuracy

Nominal

Range

Positive

Full Scale

Nominal

Range

Negative

Full Scale

Residual

Gain Error

(ppm of

Reading)

Gain

Tempco

(ppm/°C)

Residual

Offset

Error (ppm

of Range)

Offset

Tempco

(ppm of

Range/°C)

Absolute

Accuracy

at Full

Scale (μV)

10 -10 90 10 40 5 3,230

Reference tempco 5 ppm/°C

INL error 128 ppm of range

AO Absolute Accuracy Equation

AbsoluteAccuracy = OutputValue · (GainError) + Range · (OffsetError)

GainError = ResidualGainError + GainTempco · (TempChangeFromLastInternalCal) +

ReferenceTempco · (TempChangeFromLastExternalCal)

OffsetError = ResidualOffsetError + AOOffsetTempco ·

(TempChangeFromLastInternalCal) + INLError

Digital I/O/PFI

Static Characteristics

Number of channels 24 total, 8 (P0.<0..7>),

16 (PFI <0..7>/P1, PFI <8..15>/P2)

Ground reference D GND

Direction control Each terminal individually programmable as

input or output

Pull-down resistor 50 kΩ typical, 20 kΩ minimum

Input voltage protection ±20 V on up to two pins2

Waveform Characteristics (Port 0 Only)

Terminals used Port 0 (P0.<0..7>)

Port/sample size Up to 8 bits

Waveform generation (DO) FIFO 2,047 samples

Waveform acquisition (DI) FIFO 2,047 samples
