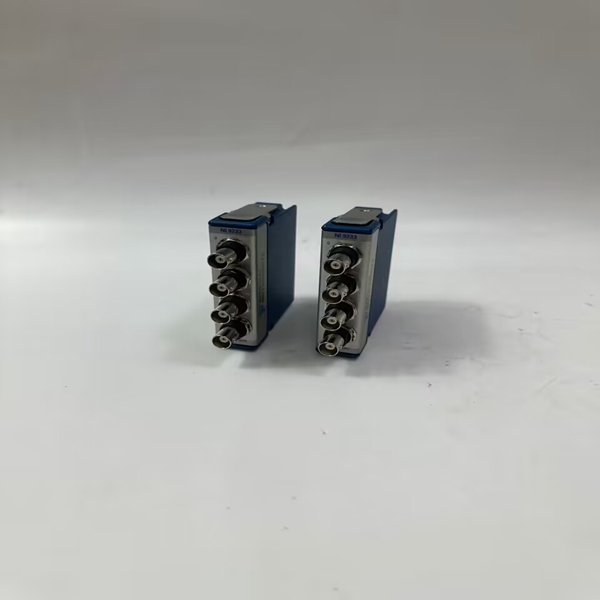

9233     National Instruments    Industrial control module spot

9233 National Instruments Industrial control module spot

Brand: National Instruments     Model number:9233

Colour:new                  Warranty: 12 months

Lead Time:3-day working day   Country of origin: USA

Price: Please contact us         Product weight:0.22kg

hipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

9233     National Instruments    Industrial control module spot


9233     National Instruments    Industrial control module spot

The SCXI-1303, 32-channel isothermal terminal block is a shielded device

with screw terminals that connect to the SCXI-1102/B/C and SCXI-1100

modules. The SCXI-1303 has a high-accuracy thermistor cold-junction

temperature sensor, and an isothermal copper plane to minimize the

temperature gradients across the screw terminals when you take

measurements with thermocouples.

The terminal block has 78 screw terminals for easy signal connection.

Thirty-two pairs of screw terminals connect to the 32 differential inputs

of the SCXI modules. One pair of terminals connects to the chassis ground

pins of the module. Three terminals connect to the SCXI module OUTPUT

and AOREF pins and to the SCXIbus GUARD. All of the other

terminals—OUT0+, OUT0–, OUT1+, OUT1–, OUT2+, OUT2–, OUT3+,

OUT3–, and AIREF—are reserved for future use.

For each input channel, the terminal block has a pullup resistor connected

between CH+ and +5 V and a bias resistor connected between CH– and

chassis ground. These resistors help you detect open thermocouples by

saturating the module amplifier output.
