product description
SCADA (Supervisory Control And Data Acquisition) system, that is, data acquisition and monitoring control system. It is a computer-based production process control and scheduling automation system, which can monitor and control the operating equipment on site to realize various functions such as data collection, equipment control, measurement, parameter adjustment and various signal alarms. It can be used in many fields such as data acquisition, monitoring control and process control in power system, water supply system, petroleum, chemical industry and other fields.
ECHO SCADA system is a comprehensive management system for PLC, RTU, host computer and other data acquisition and processing equipment and corresponding supporting application software designed and developed by Ankong Technology according to the application requirements of different industries. The system manages the scattered data of various professional industries by establishing a corresponding information resource library. The built-in mechanism performs data exchange and seamless connection with third-party application solutions through OPC, DDE, ActiveX and other communication standards and programming languages. Contains a variety of different levels of management software, various business processes and management tools to help enterprises achieve standardized management, which can improve internal information communication and data integration capabilities within the region, thereby improving the ability of enterprises to obtain key information in a timely manner and respond quickly, and strengthen enterprises. Dynamic monitoring of key departments reduces production costs, improves management levels, and ensures safe production.

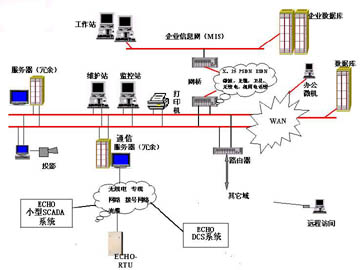

ECHO SCADA system is a real distributed information management system. Each computer on the system network is a node, and each node can independently perform the tasks assigned to it. The ECHO SCADA system communicates node-to-node through the client/server mode, using nodes on the network to share data. The performance of the ECHO SCADA system when running on the WAN is the same as when running on the LAN, and remote access to nodes in different geographical locations is as convenient as accessing nodes on the local LAN. Its biggest feature is that it collects and processes data through distributed on-site data acquisition units, transmits it to the control center through the communication network, and realizes unified management of information in the control center.
ECHO SCADA system has the characteristics of simple operation, convenient use, complete functions, reliable performance, wide application, flexible configuration and safe operation. From remote measurement and control terminals to office management computers, from communication systems to management networks, from software to hardware, ECHO SCADA system will provide you with a complete and fully integrated industrial solution. At present, hundreds of ECHO SCADA systems have been successfully implemented and operated normally in petrochemical, environmental protection, municipal, water conservancy, electric power, steel and other industries.
·The measurement and control system is divided into four data acquisition control areas: aeration desilting tank, primary sedimentation tank, aeration tank and secondary sedimentation tank.
·Each area adopts 1~2 SuperE RTUs to detect parameters such as liquid level, temperature, and PH value, and control motors such as water pumps and gates.
·Each SuperE RTU is connected to the central control room through RS-485 to form a SCADA system.
