Step Action

1 Lay the recorder face down on a clean work surface and position the universal filler plate as

shown in Figure 2-6.

2 Measure the height of the existing panel cutout.

3 Refer to Figure 2-6. Position the support brackets, supplied with the kit, so that the distance

from the top of the “window” in the filler plate to the right angle of the support brackets is just

less than the height of the existing panel cutout.

4 Secure brackets with two 10-32 x 1/4 inch screws, provided in the kit, by inserting them

through the holes in the filler plate into the tapped screw holes in the recorder case.

5 Insert the recorder into the cutout from the front of the panel as shown in Figure 2-6.

6 Refer to Figure 2-6. From the back of the panel attach a mounting bracket to each side of the

recorder case using a 1/4-20 x 1/2-inch hex screw and a lockwasher for each bracket

(mounting hardware supplied with recorder). Leave the screws slightly loose so you can adjust

the brackets.

7 While holding the recorder firmly against the panel, slide each bracket against the back of the

panel and tighten the screws.

Universal

filler plate

Height

of

cutout

in

panel

Tapped

screw holes

Support

brackets

Universal

filler plate

21407

Support brackets

(included in kit 30755134-xxx

Mounting brackets (supplied

with recorder)

NOTE: Universal filler plate and attaching

hardware are included in kit 30755134-xxx

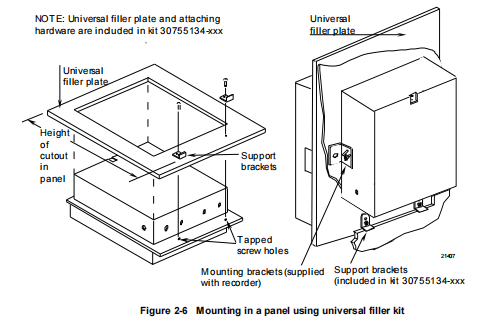

Figure 2-6 Mounting in a panel using universal filler kit

Installation - Mounting Methods

Release M DR4500A Classic Series Circular Chart Recorder With or Without Control Product Manual 21

April 2017

Mounting flush in panel (using cutout made for Kent Model 105M)

Refer to Figure 2-7 and follow the procedure in Table 2-6 to mount your recorder in an existing cutout

using the cutout made for Kent Model 105M.

Table 2-6 Mounting flush in a panel using Kent Model 105M cutout

Step Action

1 Drill two 1/4-inch holes in the back of the panel as shown in Figure 2-7. These holes are for 10-

32 screws to be inserted from back of panel into threaded inserts in the back of the recorder

case.

ATTENTION

If the panel is more than 1/4-inch thick, substitute 10-32 x 1/2-inch long

screws for the 3/8-inch long screws supplied with the recorder.

2 While supporting the recorder, insert it through the panel cutout and orient the case so that the

threaded inserts at the bottom of the case align with the holes drilled in the panel.

3 From the rear of the panel, insert two 10-32 pan head screws of appropriate length into

threaded inserts in the recorder case.

4 From the back of the panel, attach a mounting bracket to each side of the recorder case using

a 1/4-20 x 1/2-inch hex screw and a lockwasher for each bracket (mounting hardware supplied

with recorder). Leave the screws slightly loose so you can adjust the brackets.

5 While holding the recorder firmly against the panel, slide each bracket against the back of the

panel and tighten the screws.
