Lower Display

Prompt

Upper Display

Range of Setting or Selection

Parameter Definition

PID SETS

(continued)

2SP SW TWO SETS SP AUTOMATIC SWITCHOVER — when

the setpoint is GREATER than the value set at prompt

"SW VALUE" (Switchover Value), the recorder will use

Gain, Rate, Reset, and Cycle.

· When the setpoint is LESS than the value set at

prompt "SW VALUE," the recorder will use Gain #2,

Rate #2, Reset #2, and Cycle #2.

· Other prompts affected: SW VALUE

SW VALUE –999.0 to 9999 AUTOMATIC SWITCHOVER VALUE —this is the value

of process variable or setpoint at which the recorder will

switch from Tuning Constant Set #2 to Set #1. Only

appears when PID SETS selections “2PV SW” or “2SP

SW” are selected.

SP SOURC SETPOINT SOURCE — this selection determines what

your setpoint source will be; One local or Two local.

Toggled by the “SETPOINT SELECT” key.

1LOCAL LOCAL SETPOINT — the setpoint entered from the

keyboard or from the setpoint program.

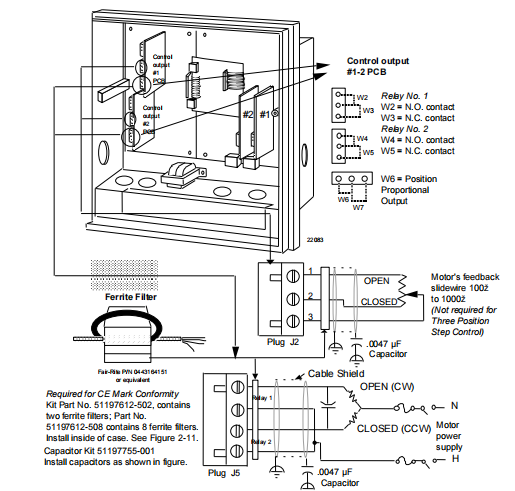

REMOTE REMOTE SETPOINT — a signal is brought in through

the second input printed circuit board connector J2 and

used as the control setpoint.

· If you select “REMOTE”, Input #2 is automatically

assigned as your RSP source for CONTROL #1;

there is no remote setpoint for CONTROL #2.

· Ratio and Bias can be applied to the remote setpoint.

Mutually exclusive with 2 Local setpoints.

· Other prompts affected: RATIO, BIAS.

2LOCAL TWO LOCAL SETPOINTS — this selection lets you

switch between two local setpoints. Mutually exclusive

with Remote setpoint.

OUT2 Only for Loop 1— Setpoint is the output of Control Loop

2.

RATIO –20.00 to 20.00 RATIO — used when input 2 operates as a remote

setpoint, prompt "REMOTE."

· This ratio value can be applied to the remote setpoint.

It establishes the correct relationship between the

remote setpoint and the input 2 signal applied

according to the formula below (under Bias).

· Input 2 must be enabled.
