Panel mounting recorder with NEMA4X door

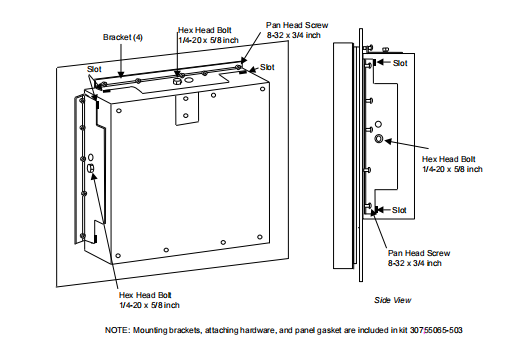

Refer to Figure 2-8 and follow the procedure in Table 2-7 to panel mount your recorder if it has a

NEMA4X door.

Table 2-7 Procedure for Mounting Recorder with NEMA4X Door

Step Action

1 Place the panel gasket onto the rear flange of the recorder case.

2 Install five #8-32 x 3/4 screws on each of the four mounting brackets so the ends of the screw

threads are flush with the face of the bracket.

NOTE: Screw heads to be flange side of brackets.

3 Insert the case with gasket into the panel opening.

4 Position the bracket so that the tabs on the end of the bracket slide into the holes in the case,

Secure the four brackets with 1/4-20 x 5/8 long bolts and lockwashers; one to the top, bottom

and each side of the case. Tighten the bolts.

5 Start to tighten the #8-32 x 3/4 screws on a bracket. Tighten the end screws first then those

toward the middle until all five screws have a 5 to 8 lb-in of torque applied. Do the same to

both the other three brackets.

When completed all twenty screws should have a 5 to 8 lb-in of torque applied. This assures

that the case and panel gaskets are adequately sealed against the panel.
