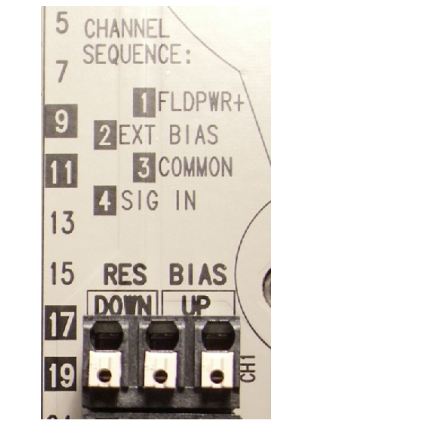

LS2D4L Honeywell Controller module Brand new

Each controller uses a BACnet MS/TP communications

port. The controller’s data is presented to other controllers

over a twisted-pair MS/TP network, which uses the EIA-

485 signaling standard capable of the following baud

rates: 9.6, 19.2, 38.4, 76.8, or 115.2 kilobits per second

(configured at global controller). The Spyder BACnet

controllers are master devices on the MS/TP network.

Each Spyder BACnet controller uses a high-quality EIA-

485 transceiver and exerts 1/4 unit load on the MS/TP

network.

Cabling should be selected that meets or exceeds the

BACnet Standard which specifies the following: an MS/TP

EIA-485 network shall use shielded, twisted-pair cable

with characteristic impedance between 100 and 130

ohms. Distributed capacitance between conductors shall

be less than 100 pF per meter (30 pF per foot). Distributed

capacitance between conductors and shield shall be less

that 200 pF per meter (60 pF per foot). Foil or braided

shields are acceptable. The Honeywell tested and

recommended MS/TP cable is Honeywell Cable 3322 (18

AWG, 1-Pair, Shielded, Low Cap, Plenum cable),

alternatively Honeywell Cable 3251 (22 AWG, 1-Pair,

Shielded, Plenum cable) is available and meets the

BACnet Standard requirements

(www.honeywellcable.com).

The BACnet MS/TP network is polarity sensitive. The

maximum BACnet MS/TP network Bus segment length is

4,000 ft. (1,219 m) using recommended wire. Repeaters

must be used when making runs longer than 4,000 ft.

(1,219 m). A maximum of three repeaters can be used

between any two devices.
