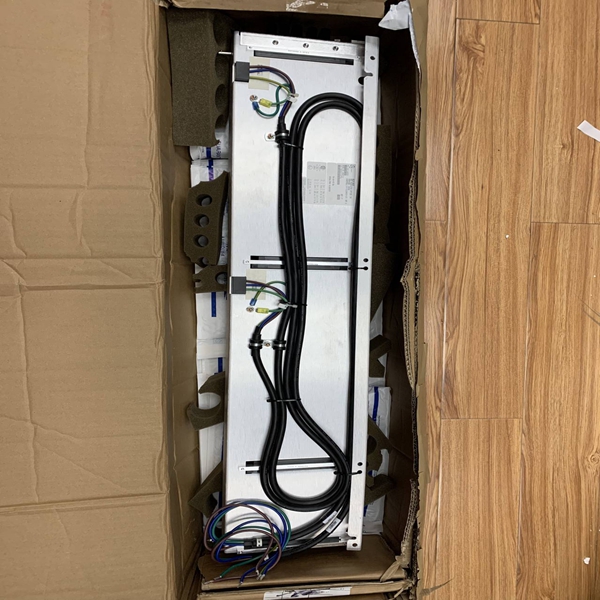

Honeywell SPS5713 51199930-100

All Series C components feature an innovative design that supports enhanced heat management. This unique look

provides a significant reduction in overall size for the equivalent function.

The unique features of Series C I/O include:

• I/O Module and field terminations are combined in the same area. The I/O Module is plugged

into the IOTA to eliminate the need for a separate chassis to hold the electronics assemblies.

• Two level “detachable” terminals for landing the field wiring in the enclosure, providing easier

plant installation and maintenance.

• Field power is supplied through the IOTA, with no need for extra power supplies and the

associated craft wired marshalling.

• Redundancy is available directly on the IOTA without any external cabling or redundancy control

devices, by simply adding a second IOM to an IOTA.

• The Series C innovative styling is one of its unique features. This styling includes features to

facilitate the effective use of control hardware in a systems environment. These features include:

• Vertical mounting for more effective wiring since most field wiring applications require entry from the top or bottom of

the systems cabinet.

• An “information circle” for a quick visual cue to draw the Maintenance Technician’s eye to important status

information.

• “Tilted” design for effective heat management within the cabinet enclosure. Since Series C allows for a significant

increase in cabinet density, an effective heat management system is critical for high systems availability.

• Input and output circuits are protected from shorts to alleviate the need for in-line fusing, reducing installation and

maintenance

.
