EC7830A1066  Honeywell    Input  module  Brand  new

EC7830A1066 Honeywell Input module Brand new

While this information is presented in good faith and believed to be accurate, Honeywell disclaims

the implied warranties of merchantability and fitness for a purpose and makes no express warranties except as may be stated in its written agreement with and for its customer.


Brand:HONEYWELL   Model numberEC7830A1066

Colour:new                  Warranty: 12 months

Lead Time:3-day working day   Country of origin: USA

Price: Please contact us         Product weight:0.22kg

hipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Servce: Professional Sales provides 24 hours /7 days online service

EC7830A1066  Honeywell    Input  module  Brand  new

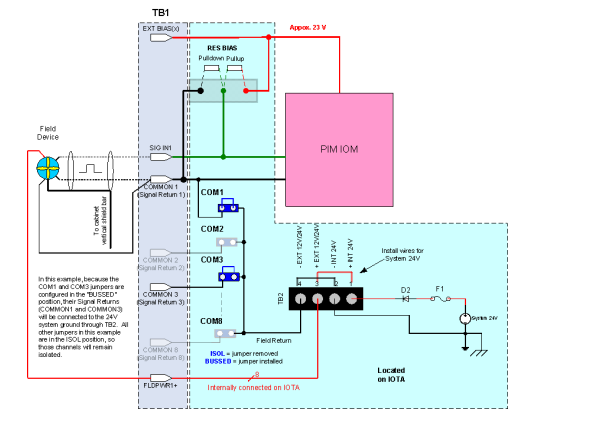

For this type of connection, you need four wires. Two wires provide power to the sensor and the

other two wires connect the pulse output from the sensor to the PIM. This example shows the field

sensor connected to channel 1 but the procedure applies to the remaining channels.

The internal +24 Vdc supply, TB1, and TB2 are used to supply sensor power. This is accomplished

by connecting the corresponding channel’s FLDPWR1+ pin and COMMON1 pin to the positive and

negative power leads of the field sensor respectively. To complete the circuit, place the jumper wire

across the pins of the COM1 terminal block as illustrated in the above diagram so that so field

return is tied to COMMON1.

Install wires at TB2 as illustrated in the above diagram to feed all eight of the FLDPWR(x) to TB1.

There is no need to add individual wires from FLDPWR(x) to the +EXT 12V/24V connector at TB2 as

this is provided by internal copper tracks on the IOTA.

For clarity, the LED DS1 and other components are not shown in the above diagram. See also

figure PIM TB1 pin assignments.

Example 2: Sensor powered from Series C System +24 V internal supply.

Power connections directly made through TB2

The following figure displays a sample diagram where the sensor is powered from Series C system

+24 V internal supply and the power connects are directly made through TB2.

.


.


We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation!
