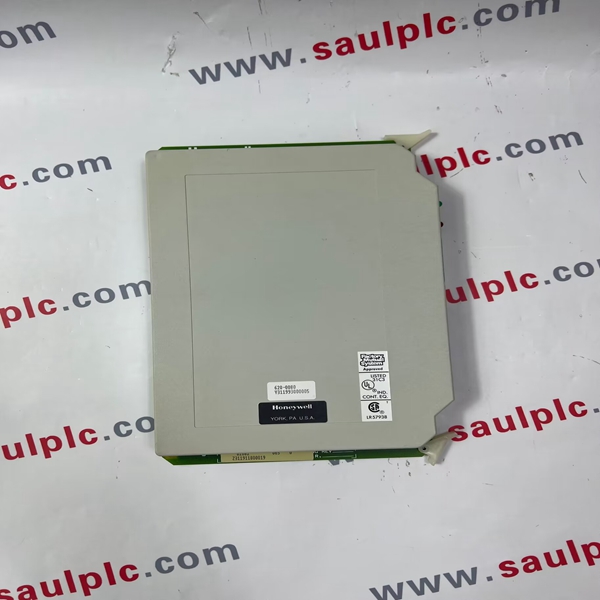

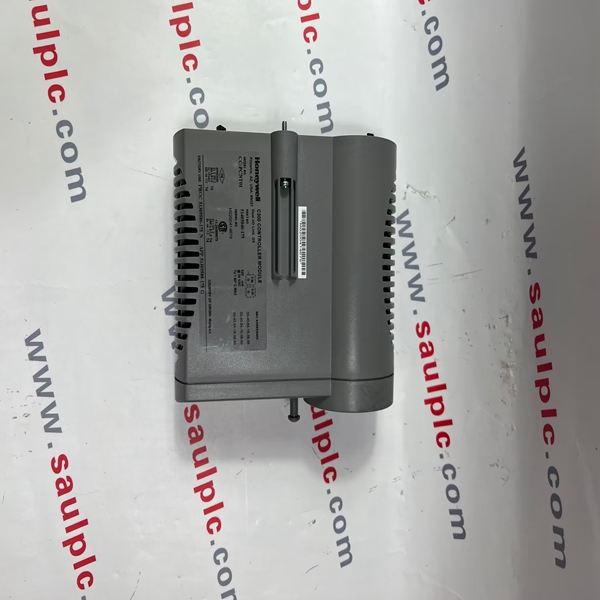

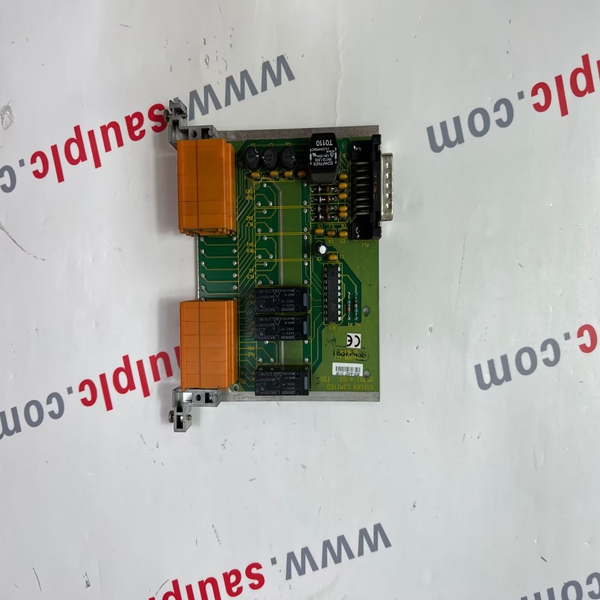

B0132WV-B Honeywell Controller module Brand new

All wiring and pre-fabricated cables are available.

ATTENTION

Prior to installing or servicing the FOE assembly (FOE module on the IOTA) to the carrier, the

F1 fuse needs to be removed. After mounting the FOE assembly to the carrier and securing

the power and ground screws, the F1 fuse can be re-installed.

To mount the FOE module/IOTA assembly to the carrier

1. Ensure the F1 fuse is removed.

2. Make sure each of the 4 carrier mounting screws have their spacers secured by the plastic

retaining washers.

3. Select the desired mounting location on the carrier and align the mounting holes in the IOTA

with the screw-hole locations on the carrier.

4. Using a #2 Phillips screwdriver, secure the FOE assembly to carrier using the 4 corner carrier

mounting screws.

5. Tighten the two power screws, connecting the IOTA board to the vertical bus bars on the

channel carrier assembly:

l +24 V power screw

l Com ground screw

6. This completes the procedure.

13.3.5 Connecting the IOLINK interface cable to the FOE module

ATTENTION

The lOLINK interface cable should be connected before powering the FOE module.

Prerequisites

Before connecting the FOE module's IOL interface cable to the module:

l Refer to FOE connection rules.

To connect the IOLINK interface cable to the FOE module

1. Ensure the IOLINK interface cable connector is properly aligned with the connector on the

FOE module.

2. Press plug firmly into the connector.

3. Fasten the screws on the cable connector to the FOE module.

4. This completes the procedure
