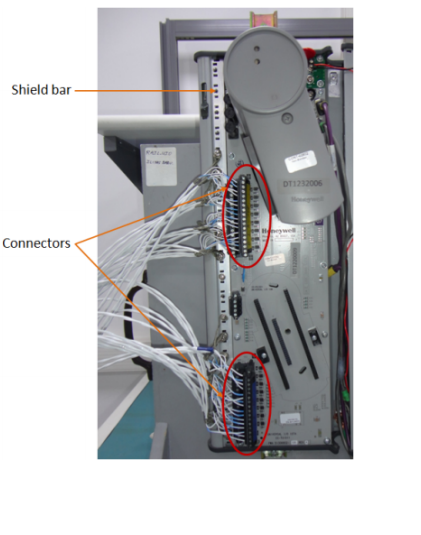

900A16-0101 Honeywell Controller module Brand new

Description DESC Yes Used to specify descriptive text for the

function block. Appears on both detail and

group displays.

IOM Number IOMNUM Yes This parameter value must be unique on a

specific I/O Link, and its range must be

between 1 and 40. If IOMNUM=0 and the IOP

block is assigned to an I/O Link block, Control

Builder automatically defaults the IOMNUM

to the next available value on the I/O Link.

Execution

State

IOMSTATE No Defines execution state

Associated

IOLINK

IOLINK No Defines associated IOLINK

Database

Valid

No Defines if database is valid

IOM

Location

IOPLOCATION Yes Identifies the user-entered location (within

the plant) where this IOM can be found.

Number of

Channels

NUMCHANS No The number of channels available in the IOM

I/O Link

Scan Rate

SCANRATE Yes Defines scan rate

I/O Link

Cable Color

IOLINKCOLOR No Defines cable color. See

I/O Link Address Jumpers for color listing.

This IOM is

redundant

IOREDOPT Yes Module is part of redundant pair.

Status IOMSTSA No Defines status of IOM:

Idle, OK, No Response

Operation IOMOPER No Defines operation status of IOM:

Primary, Secondary

Redundancy

Status

REDDATA No Defines if redundancy is enabled

Frequency

60/50Hz

(AI LLMUX

only)

FREQ6050 Yes User-configured power supply determination:

50Hz or 60Hz (AI-LLMUX, DIHV)

Command IOMCOMMAND No Swap primary, reset errors, etc.

DI Mode DIMODE Yes Defines the mode of the DI-24V and DI-SOE

modules to be Normal, SOE, or Low Latency

Configured

Prover

Signal

CONFIGPROVERSIGNAL Yes Provides the user the ability to specify on any

given Pulse Input Module the signal stream

to output to the prover signal screw pair. Only

dual streams can be selected.

Actual

Prover

Signal

ACTUALPROVERSIGNAL No Provides the user or a program the actual

signal stream being output to the prover

signal screw pair.

Maintain

Selection on

Fault

MAINTAINONFAULT Yes Provides the user the ability to specify the

action to be taken by the system in case of a

special condition or faults in the module or its

ability to output the selected stream to the

prover signal.
