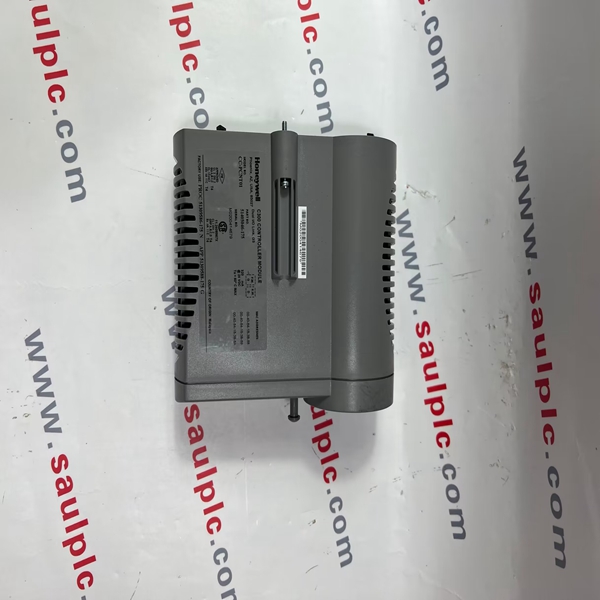

For this type of connection, you need four wires. Two wires provide power to the sensor and the

other two wires connect the pulse output from the sensor to the PIM. This example shows the field

sensor connected to channel 1 but the procedure applies to the remaining channels.

The internal +24 Vdc supply, TB1, and TB2 are used to supply sensor power. This is accomplished

by connecting the corresponding channel’s FLDPWR1+ pin and COMMON1 pin to the positive and

negative power leads of the field sensor respectively. To complete the circuit, place the jumper wire

across the pins of the COM1 terminal block as illustrated in the above diagram so that so field

return is tied to COMMON1.

Install wires at TB2 as illustrated in the above diagram to feed all eight of the FLDPWR(x) to TB1.

There is no need to add individual wires from FLDPWR(x) to the +EXT 12V/24V connector at TB2 as

this is provided by internal copper tracks on the IOTA.

For clarity, the LED DS1 and other components are not shown in the above diagram. See also

figure PIM TB1 pin assignments.

Example 2: Sensor powered from Series C System +24 V internal supply.

Power connections directly made through TB2

The following figure displays a sample diagram where the sensor is powered from Series C system

+24 V internal supply and the power connects are directly made through TB2.

We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
