The maximum allowable field wiring resistance between the transmitter and the IOTA connection terminal is dependent upon the voltage requirement of the transmitter. The formula for calculating the maximum wiring resistance for the Series C UIO channel used as an analog input is given by the following equation.
Brand：HONEYWELL Model number：620-0007R
Colour：new Warranty: 12 months
Lead Time：3-day working day Country of origin: USA
Price: Please contact us Product weight：0.22kg
hipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Servce: Professional Sales provides 24 hours /7 days online service
620-0007R Honeywell Power module Brand new
l Single mode FOE configuration
l Pull High/Low resistor setting
l DIP switch settings
13.5.1 Key features of single mode FOE
l Single mode fiber that can extend the IOLINK up to 10 km.
l Three-way communication: RS-232, fiber and RS-422/485.
l Rotary switch to change the pull high/low resistor value
l Extend RS-232/422/485 transmissions up to 440 km with single-mode. However, FOE module
on IOTA supports up to 10 km only.
l Reverse power protection.
l Support baud rate up to 921.6 Kbps.
l Class I, Div. II certification.
The single mode fiber optic converter extends RS232/422/485 transmission up to 10km long with
single mode fiber.

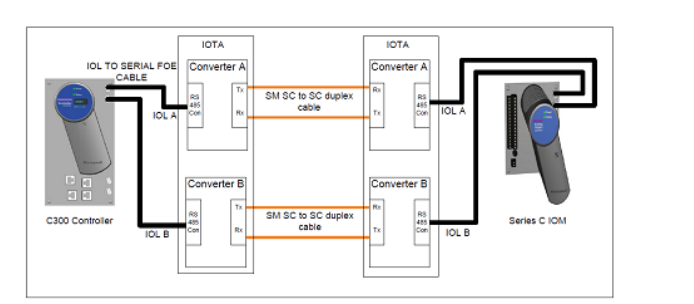

The following figure displays a sample IO link arrangement.
13.5.2 Key features of single mode converter
l Fiber optic support for Honeywell IO Link optional speed selection for 750/375 kbits/s.
l Provides fiber to copper conversion and re-transmitted fiber signals.
l The optical power emitted is less than 0.5mW.
l CE marked.
Features Description
Supported family Series C, Process Manager
Topology types
l Point-to-point
.
.
We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
