The maximum allowable field wiring resistance between the transmitter and the IOTA connection terminal is dependent upon the voltage requirement of the transmitter. The formula for calculating the maximum wiring resistance for the Series C UIO channel used as an analog input is given by the following equation.
Brand：HONEYWELL Model number：51403282-100
Colour：new Warranty: 12 months
Lead Time：3-day working day Country of origin: USA
Price: Please contact us Product weight：0.22kg
hipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Servce: Professional Sales provides 24 hours /7 days online service

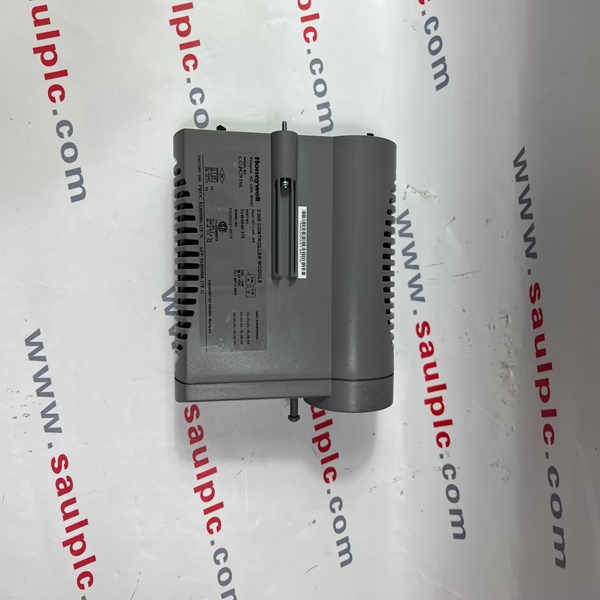

51403282-100 Honeywell Central control module Brand new
ATTENTION
When any failure that results in a switchover occurs in a Secondary module, the Secondary
module loses synchronization.
In addition to the failure conditions, this event is reported as diagnostic notification:
l Loss of view of redundant partner on network.
l Loss of private path connection from Primary to Secondary (lonely event).
The following table identifies failure conditions that result in a switchover and those that do not.
Failure conditions that result in a switchover Failure conditions that do not
result in a switchover
Power to Primary module fails. One or all cables fail.
An IOLINK to the Primary Series C module is lost. One or all network conditioners fail.
Primary Series C module fails. All supplied power to the link fails.
Table 9.2 Failure conditions that result in switchover
9.4 Configuration tools to create control strategies
The Experion Control Builder application creates control strategies that use Series C I/O data. In
developing a valid control strategy, the following activities are required to be supported by Control
Builder:
l create hardware blocks,
l associate blocks,
l assign modules,
l assign devices, and
l load components.
Regardless of what tool is used to configure Series C I/O, the IOM must be present during
configuration load. If the IOM is not present load errors will occur and a subsequent reload or
checkpoint restore will be required.
Refer to the Control Building Guide to create control strategies.
.
.
We have the same series of models in stock. If you don't find the model you need, please contact us and we will provide you with an official quotation！
