The controller enclosure is constructed of a plastic base
plate and a plastic factory-snap-on cover. The cover does
not need to be removed from the base plate for either
mounting or wiring. Removable terminal blocks are used
for all wiring connections, which allow the controller to be
wired before or after mounting.
Brand：HONEYWELL Model number：51401491-100
Colour：new Warranty: 12 months
Lead Time：3-day working day Country of origin: USA
Price: Please contact us Product weight：0.22kg
hipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Servce: Professional Sales provides 24 hours /7 days online service

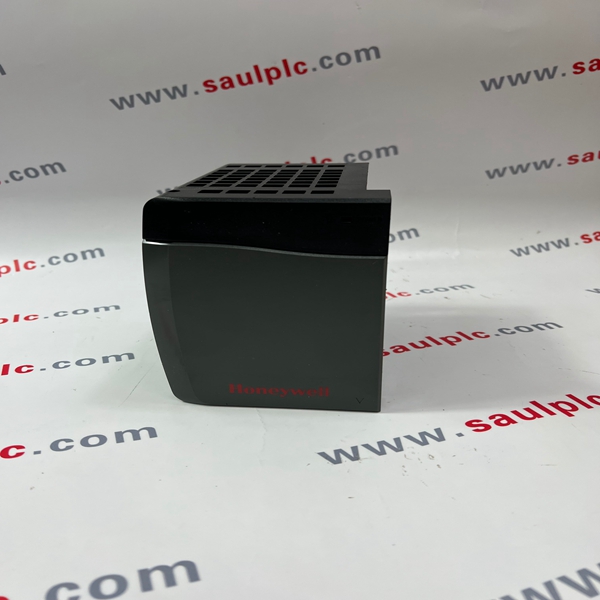

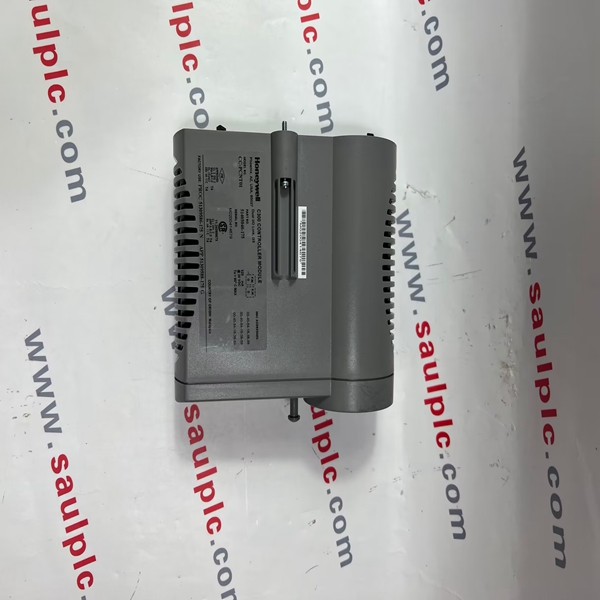

51401491-100 Honeywell Power module Brand new
Function
The Pulse Input Module (PIM) provides the Experion C300 controller with the ability to monitor various pulse input field
values. The PI module processes signals from pulse-generating devices and provides a calculated rate and an
accumulated total. The PI supports a “fast cutoff” capability to stop dosing operations when the threshold has been met.
High-accuracy and repeatable measurement capability make the PIM well suited for metering and custody transfer
applications.
This module is specifically engineered to support the MeterSuite Custody Transfer Application including support for dual
pulse per ISO6551. Implementation of ISO-6551/API 5.5 for dual pulse inputs, including Level A, pulse integrity.
Notable Features
• Extensive self-diagnostics
• Optional redundancy
• High Accuracy Frequency, Period and Pulse Width
Measurement
• Supports the MeterSuite Application
• ISO 6551 Fidelity
Detail Specifications –Pulse Input
Parameter Specification
Input / Output Model CC-PPIX01 - Pulse Input
IOTA Model CC-TPIX11 Redundant 12”
Number of Inputs 8 (Single) or 4 (Dual)
Supports Mixed Combination of Single/Dual Input Channels
Number of Outputs 2
Input type High-impedance, differential voltage ,
optically isolated (1000 VDC)
Frequency Range 0 - 100 KHz Single Channel
0 – 10 KHz Dual Pulse Channel
Frequency Accuracy ( 0.5 Hz – 100 KHz) +/- 0.001% of Reading
Input Voltage (Independent of Input Voltage Range) 0 to 35 VDC
Input Voltage Trip Points High Setting: Low to High: 8.4V ; High to Low: 7.7V
Low Setting: Low to High: 2.8V ; High to Low: 2.0V
Input Edge Selection Configurable: Rising Edge (Default) or Falling Edge
Channel Input Impedance Greater than 70 K Ohms
Input Channel Function Frequency (PV), Accumulated Value (AV), Pulse Width
High, Pulse Width Low, Period
Isolated / Bussed Input Jumper Option Isolated or bussed configuration selection per channel
Internal / External Excitation Power connection can support internal 24V operation or an
external (user supplied) excitation voltage +5 to +30Vdc
.
.
