51401381-100 Honeywell Power module Brand new

Function

The Pulse Input Module (PIM) provides the Experion C300 controller with the ability to monitor various pulse input field

values. The PI module processes signals from pulse-generating devices and provides a calculated rate and an

accumulated total. The PI supports a “fast cutoff” capability to stop dosing operations when the threshold has been met.

High-accuracy and repeatable measurement capability make the PIM well suited for metering and custody transfer

applications.

This module is specifically engineered to support the MeterSuite Custody Transfer Application including support for dual

pulse per ISO6551. Implementation of ISO-6551/API 5.5 for dual pulse inputs, including Level A, pulse integrity.

Notable Features

• Extensive self-diagnostics

• Optional redundancy

• High Accuracy Frequency, Period and Pulse Width

Measurement

• Supports the MeterSuite Application

• ISO 6551 Fidelity

Detail Specifications –Pulse Input

Parameter Specification

Input / Output Model CC-PPIX01 - Pulse Input

IOTA Model CC-TPIX11 Redundant 12”

Number of Inputs 8 (Single) or 4 (Dual)

Supports Mixed Combination of Single/Dual Input Channels

Number of Outputs 2

Input type High-impedance, differential voltage ,

optically isolated (1000 VDC)

Frequency Range 0 - 100 KHz Single Channel

0 – 10 KHz Dual Pulse Channel

Frequency Accuracy ( 0.5 Hz – 100 KHz) +/- 0.001% of Reading

Input Voltage (Independent of Input Voltage Range) 0 to 35 VDC

Input Voltage Trip Points High Setting: Low to High: 8.4V ; High to Low: 7.7V

Low Setting: Low to High: 2.8V ; High to Low: 2.0V

Input Edge Selection Configurable: Rising Edge (Default) or Falling Edge

Channel Input Impedance Greater than 70 K Ohms

Input Channel Function Frequency (PV), Accumulated Value (AV), Pulse Width

High, Pulse Width Low, Period

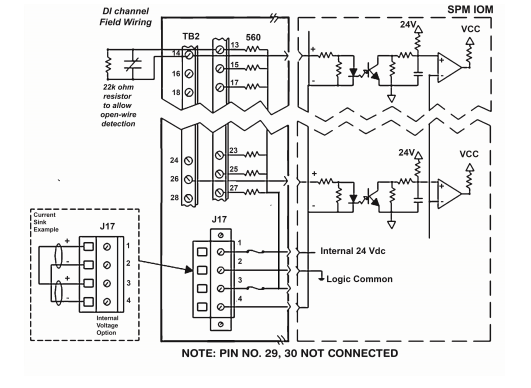

Isolated / Bussed Input Jumper Option Isolated or bussed configuration selection per channel

Internal / External Excitation Power connection can support internal 24V operation or an

external (user supplied) excitation voltage +5 to +30Vdc
