51400712-200 Honeywell Power module Brand new

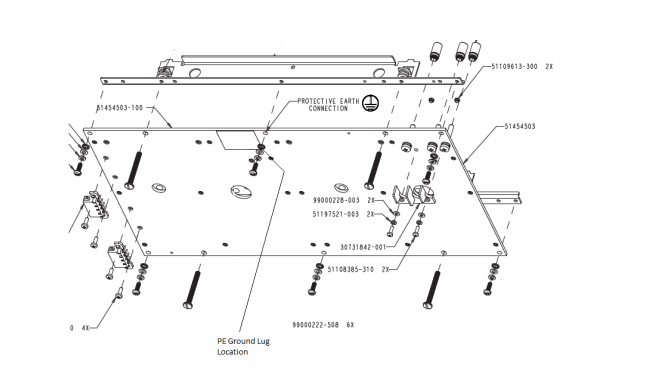

DIN railmounting

base

It is designed to mount IOTA, UIO, rail-UIO-IOTA power conditioning PWA, end caps,

and DIN adapter.

Rail-UIO-IOTA

power

conditioning

PWA

It is designed to provide the interface between the external 24V DC power supply

and the rail-UIO-IOTA. A conducting copper clamp is used for mounting the Printed

Wiring Assembly (PWA) to the IOTA.

IOTA It is mounted directly on the base. The power and ground connections to the IOTA

are identical to the power and ground connections of the Series C IOTA and no

special instructions are required for mounting.

End caps These caps cover the open ends of the rail-mounted UIO module assembly.

Ferrite clamp This is a device used for reducing the amount of RF (radio frequency) noise, or

interference, in a wire that conducts electricity. Ferrite clamps are typically used for

improving the performance of sound systems, including microphones.

Sliders This is a plastic cap placed over the lever of the clamp, which can be used for

locking or unlocking the module on the rail by moving slider towards the lock

symbol and moving slider towards the unlock symbol respectively.

DIN adapter This enables the rail-mounted UIO module assembly to be secured to a standard

TS35 top hat (35mm width x 7.5 mm Height x 1.5 mm thick) DIN rail.

DIN rail

stopper

This is used for preventing the rail-mounted UIO module assembly from sliding

down during normal operational conditions.

The following table provides the part numbers of the selected items that would be considered

infrastructure for the rail-mounted UIO module assembly.
