Series-C I/O modules are constructed to support normal field failures, wiring errors and conditions such as a shorted wire. All Series-C IOTAs contain at least one fuse that provides protection for catastrophic errors in the IOTA, IOM and other elements of the Series-C system. In normal operation as well as many abnormal operations, the fuse element should not blow
Brand：HONEYWELL Model number：51196886-100
Colour：new Warranty: 12 months
Lead Time：3-day working day Country of origin: USA
Price: Please contact us Product weight：0.22kg
hipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Servce: Professional Sales provides 24 hours /7 days online service
51196886-100 Honeywell Programmable controller Brand new
Cables
A new cable and an adaptor for the existing cable are introduced to interface between the CB/EC
rack and the TCBxx. For more information about the cables, see UHIO cables.
7.5.6 Upgrade configurations
There are seven configurations introduced for UHIO. For more information about the
configurations, see UHIO Hardware Model Numbers.
l Horizontal Backplane
l Battery mounting panel and RAM Battery Backup
l UHIO Power Supply
l Half panel plastic cover
l UHIO cables
l UHIO Hardware Model Numbers
l Mounting Assembly CC-ZHMT10

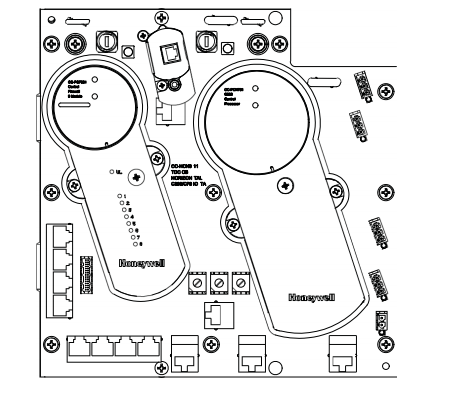

7.5.7 Horizontal Backplane
A new Horizontal Backplane is introduced to power up the new form factor CF9/C300 and UHIO
IOTAs and to maintain the same form factor as the TDC 2000 CB/EC card file. The size and
component placement of the Series C CF9/C300, and UHIO IOTAs is modified to fit on to the
Horizontal Backplane and thereby the same form factor as the TDC 2000 CB/EC card file is
maintained.
The Backplane is mounted on a mechanical frame that adds rigidity and support to the whole
assembly. This frame is mounted in place of the TDC 2000 CB/EC card file.
This Backplane supports the following different configuration.
l Two C300/CF9 IOTA’s mounted on the Backplane
l Two UHIO IOTA’s mounted on the Backplane
l One C300/CF9 IOTA and one UHIO IOTA mounted on the Backplane
The following table lists the model number and the part number of the Horizontal Backplane.
.
.
