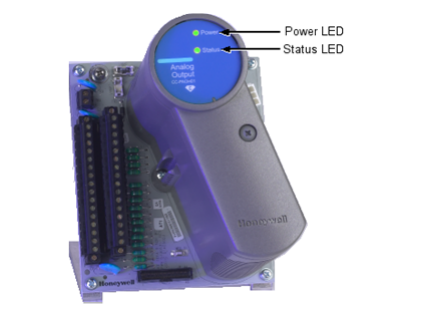

51107403-100 Honeywell Input module Brand new

Green -

flashing

(toggle once

per second)

Primary Run/Idle with Soft Failure

The module is operating, but it is operating in a diminished state as one or

more soft failures have been identified.

Amber The module is either not configured or operating as a secondary.

Not Configured - The module has not been configured.

Secondary - The module is operating 100% correctly as the secondary

module. This does not imply that it is synchronized with the primary IOM.

Amber -

flashing

(toggle once

per second)

Not Configured with Soft Failure - The module has not been configured

and is operating with one or more active soft failures.

Secondary with Soft Failure- The module is operating as the secondary

module in a diminished state as one or more soft failures have been

identified.

Red Power-on - The device is in a non-standard, transient state and not

controlling any part of your plant or process.

Module has just started and power-on self-test is running. During this time,

there is no communication to the module.

Red - flashing

(toggle once

per second)

The device is in a non-standard, transient state and not controlling any part

of your plant or process.

Alive, Ready for Firmware Upgrade - The module is ready to receive an

update to its internal programming instructions.

Red - fast

flashing,

(toggle one

quarter (1/4)

second)

The device is in a non-standard, transient state and not controlling any part

of your plant or process.

Alive, Firmware Upgrade in Progress - The module is receiving an update to

its internal programming instructions. Do not remove power to the module.

Off Failed - The module has hard failed. The module is no longer

communicating and must be power cycled or replaced.

DO channels transition to the configured fault state. If field power is lost, all

outputs go unpowered.

AO channels will go unpowered.
