Brand：HIMA Model number：F7130A
Lead Time：3-day working day Country of origin: USA
Price: Please contact us Product weight：0.22kg
Colour：new Warranty: 12 months
hipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore

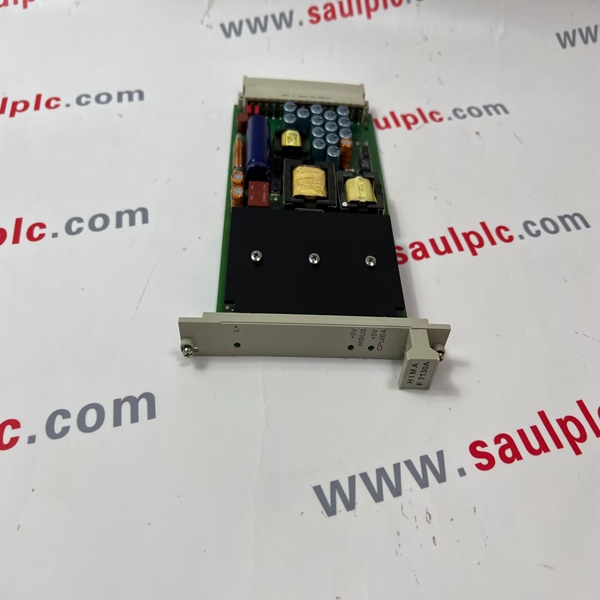

HIMA F7130A Industrial control module card

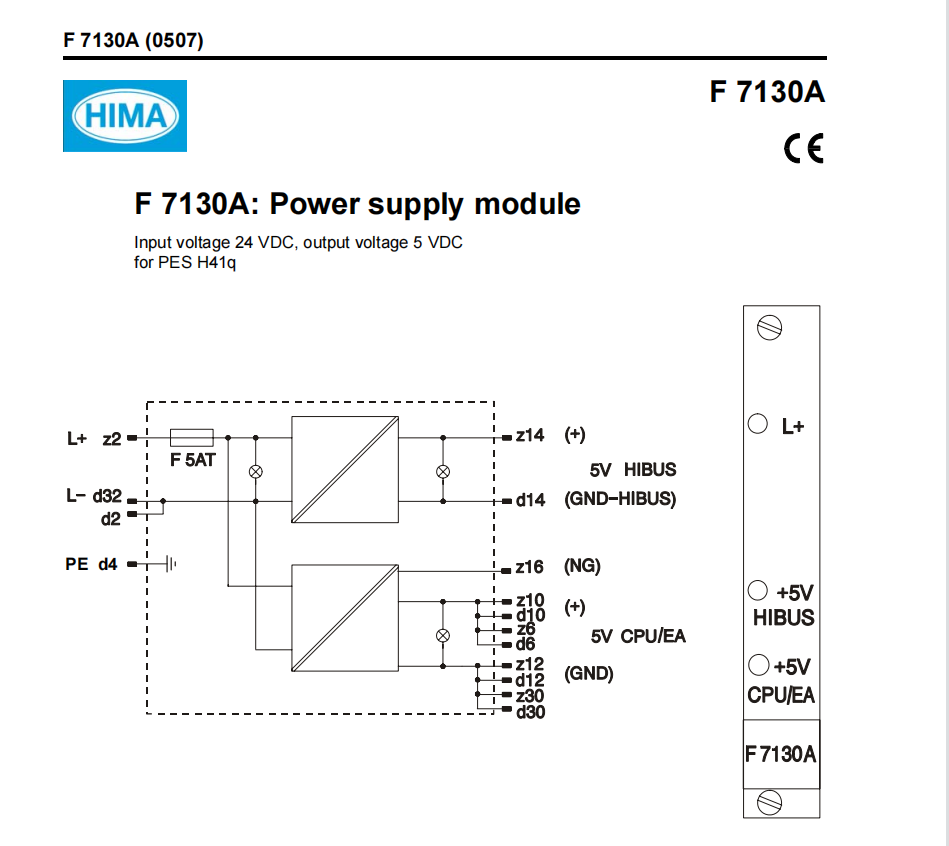

F7130AFigure 1: F 7130 A power supply module
The module supplies PES H41q with 5 VDC from a main supply of 24 VDC. It is a DC/DC con.verter with electrical isolation between input and output voltage. The module is equipped withovervoltage protection and current limitation. The outputs are short-circuit proof. The supplyconnections are separated for the central device/l0 modules and HIBUS interface
The present input voltage (L+) and the output voltages are indicated with LEDs on the frontplate. A proper operation of the module is still assured if the LED 5 V CPU/EA illuminates onlyslightly.
The power supply for the monitoring of the central device is fed separately via pin z16 (NG)
Operating data
Primary fuse
Outputs for
central device/lO-modules
HIBUS
Efficiency rate
Space requirement
24 VDC, -15...+20 %, lpp < 15 %
5 A gL
5 VDC,士0.25 V110 A
5 VDC,士0.25 V11A
> 70 %
4 SU
