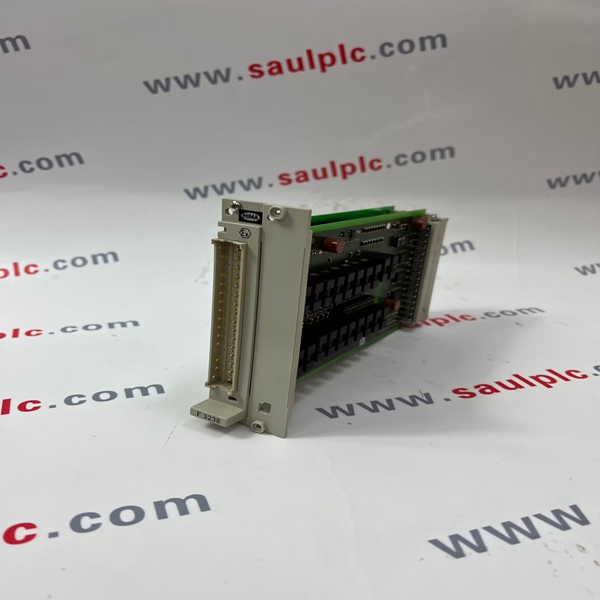

HIMA F3238 Industrial control module card
F 3236 (9912) Overview Data Sheets
All rights reserved. The technology is subject to changes without notice: 1/2
HIMA Paul Hildebrandt GmbH + Co KG, Postfach 1261, 68777 Brühl
F 3236
F 3236: 16-fold input module,
safety related
for 1 signals or sensors
with safety isolation
requirement class AK 1 ... 6
The module is automatically fully tested for correct function during opera tion. The test functions are:
– Cross-talking of the inputs with walking-zero
– Functions of the filtre capacitors
– Function of the module
Inputs 1-signal, 6 mA (incl. cable plug)
or mechanical contact 24 V
Switching time typ.8 ms
Space requirement 4 TE
Operating data 5 V DC: 120 mA
24 V DC: 200 mA
Front cable plug
Block diagram
ge-gn
ge-gn

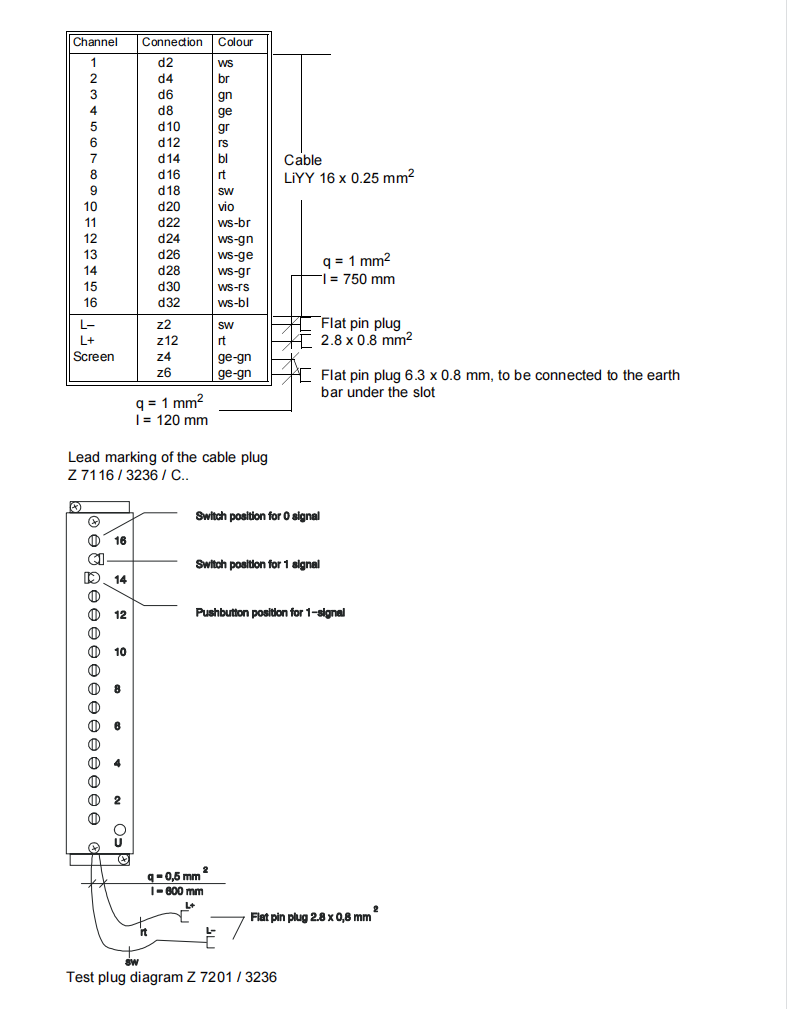

Lead marking of the cable plug
Z 7116 / 3236 / C..
Cable
LiYY 16 x 0.25 mm2
Flat pin plug
2.8 x 0.8 mm2
Flat pin plug 6.3 x 0.8 mm, to be connected to the earth
bar under the slot
q = 1 mm2
l = 120 mm
q = 1 mm2
l = 750 mm
Test plug diagram Z 7201 / 3236
HIMA F1107 (17.001)
HIMA F1201 (17.040)
HIMA F1202 (17.046)
HIMA F2101 (17.025)
HIMA F2102 (17.045)
HIMA F2103a (17.050)
HIMA F2108 (17.019)
HIMA F2201 (17.035)
HIMA F3102 (17.057)
HIMA F3105 (17.047)
HIMA F3108 (17.039)
HIMA F3113 (17.033)
HIMA F3113a (17.048)
HIMA F3117 (17.030)
HIMA F3209 (17.012)
HIMA F3211A (17.061)
HIMA F3212A
HIMA F3213A
HIMA F3215A
HIMA F3226(17.007)
HIMA F3316 (17.031)
HIMA F3328 (17.008)
HIMA F3330 (17.013)
HIMA F3334
HIMA F3403 (17.038)
