IC693CPU313LT GE Cable Diagram
Brand： GE Model number：IC693CPU313LT
Colour：new Warranty: 1 year
Lead Time：3-day working day Country of origin: USA
Price: Please contact us Product weight：0.12kg
hipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
IC693CPU313LT GE
The cable diagram shown below may be different from the cable diagram recommended by GE Intelligent
Platforms. Please be assured there is no operational problem in applying the cable diagram shown in this manual.
• The FG pin of the External Device body must be D-class grounded. Please refer to the manual of the External
Device for more details.
• SG and FG are connected inside the Display. When connecting SG to the External Device, design the system
not to form short-circuit loop.
• Connect the isolation unit, when communication is not stabilized under the influence of a noise etc..
Cable Diagram 1
Display
(Connection Port) Cable Notes
GP3000*1 (COM1)
AGP-3302B (COM2)
GP-4*01TM (COM1)
GP-Rear Module (COM1)
ST*2 (COM2)
IPC*3
*1 All GP models except AGP-3302B
*2 All ST models except AST-3211A and AST-3302B
1A
COM port conversion adapter by Pro-face
CA3-ADPCOM-01
+
Terminal block conversion adapter by Pro-face
CA3-ADPTRM-01
+
Your own cable
The cable length
must be 1000m or
less.
1B Your own cable
GP3000*4 (COM2)
1C
Online adapter by Pro-face
CA4-ADPONL-01
+
Terminal block conversion adapter by Pro-face
CA3-ADPTRM-01
+
Your own cable
The cable length
must be 1000m or
less.

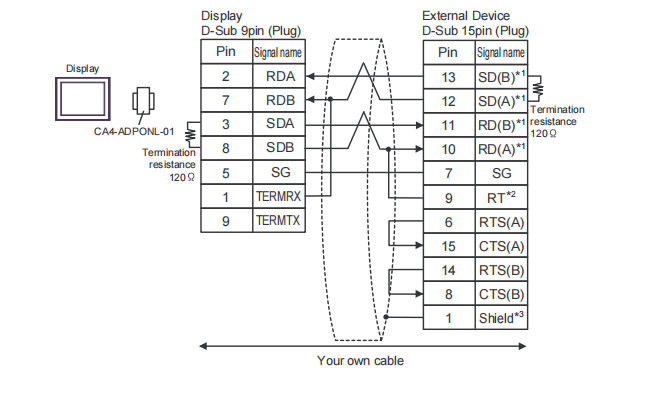

1D
Online adapter by Pro-face
CA4-ADPONL-01
+
Your own cable
GP4000*5 (COM2)
GP-4201T (COM1)
SP5000 (COM1/2)
1E
RS-422 Terminal Block Conversion Adapter by Pro-face
PFXZCBADTM1*6
+
Your own cable
The cable length
must be 1000m or
less.
1B Your own cable
GP-4106 (COM1)
GP-4116T (COM1) 1F Your own cable
The cable length
must be 1000m or
less.
PE-4000B*7
PS5000*7 1G Your own cable
The cable length
must be 1000m or
less.
