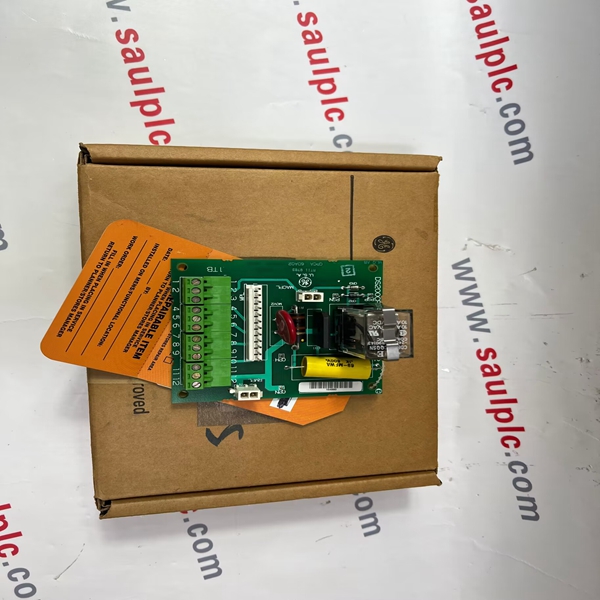

531X112PSAARG1 531X112PSAAR 531X112 GE Input module Brand new

Reporting of duplicate IP address The PACSystems RX7i does not log an exception or a fault in the

Controller Fault Table when it detects a duplicate IP address on the

network.

Multiple zero period EGD exchanges

may not produce similar numbers of

samples

If more than one EGD produced exchange is configured for a production

period of zero, the exchanges may not produce similar numbers of

samples. Due to the way that scheduling occurs when multiple exchanges

are scheduled “as fast as possible,” some zero period exchanges may

produce significantly more samples than others. For more consistent EGD

production, configure the produced EGD exchanges with non-zero

production periods.

Changing IP address while SRTP

connection open may generate log

events

Open SRTP Server connections established with a remote SRTP client

are not terminated as expected when the RX7i’s IP address is changed

(typically by storing a new HW Configuration to the RX7i). A Series 90

SRTP client (“SRTP channels”) reports either a 9690H or 0190H status;

the SRTP connection may remain open until the connection is terminated

as a result of a client timeout.

Series 90-70 datagrams are not

supported

Series 90-70 datagrams are not supported. This means that Series 90-70

- format variable list requests from Host Comm Toolkit applications will

fail. (Series 90-30 – format datagrams are supported, but cannot access

%P or %L memory in the RX7i.)

AUP parameter should not be changed The Advanced User Parameter “wsnd_buf” should not be changed by the

user. Changing the value of this parameter may cause the LAN LED to go

out and the Ethernet Interface to drop connection.

Heavy load can block station manager As explained in TCP/IP Communications for PACSystems Station

Manager Manual, GFK-2225, Chapter 1, a heavy EGD and/or SRTP load

can block Station Manager operation.

One-time delay of EGD Production (and

possibly Consumption) if more than 24

SRTP Server Connections are started

simultaneously

If more than 24 SRTP Server connections are established simultaneously,

EGD Production may be briefly delayed for each connection after the 24th

when the connections are first made after power is applied. If EGD

consume acceleration has been disabled, then EGD Consumption will

also be delayed. The delay only occurs once when the SRTP Server

connection is established for the first time after Powerup. No delay is

experienced for the first 24 SRTP Server connections.

Very Heavy EGD

production/consumption at server may

cause EGD command timeouts

Very heavy EGD production and/or consumption at a server device may

cause EGD command timeout errors when another device attempts to

send EGD commands to that server. If EGD commands must preempt

normal production, you may set the “gcmd_pri” Advanced User Parameter

to 2 (see GFK-2224, Appendix A). Note that by doing so, EGD exchange

production may be delayed.
