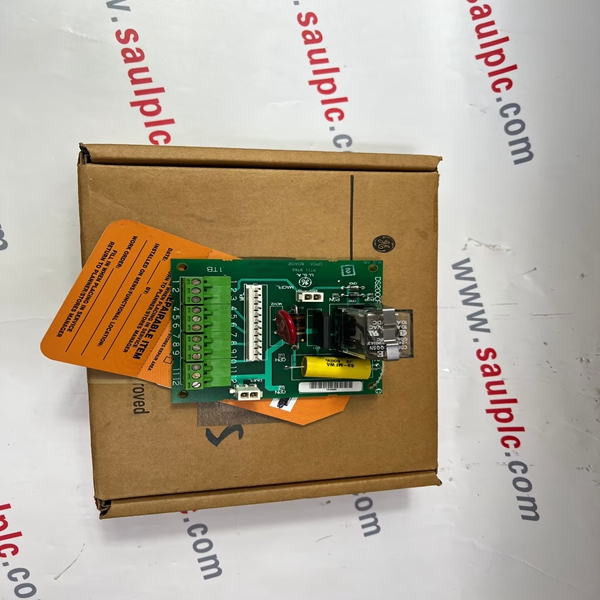

44A717588-G01  GE   Input module Brand new

44A717588-G01 GE Input module Brand new

Supports Series 90-70 discrete and analog I/O, communications, and other modules. For a

list of modules supported, refer to the PACSystems RX7i Installation Manual, GFK-2223.

 Supports all VME modules supported by Series 90-70.


Brand: GE                 Model number:44A717588-G01

Colour:new                  Warranty:44A717584-G01

Lead Time:3-day working day   Country of origin: USA

Price: Please contact us         Product weight:0.12kg

hipping Port: China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

44A717588-G01  GE   Input module Brand new





Backplane Comm window Setting and

Genius redundancy

When using Genius Redundancy, do not set the backplane

communications window timer to 0. Also be sure to allow enough time

for the backplane communications window to run when using Constant

Sweep mode. Ample backplane communications window time must be

available for the GBCs to exchange information about Genius devices

that are lost and added.

Expansion rack ID Series 90-70 expansion racks are shipped with the rack ID strapped

for rack 0 (the main rack). If the rack jumper is not changed the CPU

will not recognize the rack at all and may not properly identify the

error.

Expansion rack cable Connection and disconnection of an expansion rack cable while the

CPU is running should not be attempted. This will cause the RX7i to

go to the STOP/HALT state.

Expansion rack power Expansion racks should be powered up at the same time the main

rack is powered up or they should be powered up after the main rack

has completed its power up initialization. Do not power up an

expansion rack while the CPU is running power-up diagnostics.

Timer operation Care should be taken when timers (ONDTR, TMR, and OFDTR) are

used in program blocks that are NOT called every sweep. The timers

accumulate time across calls to the sub-block unless they are reset.

This means that they function like timers operating in a program with a

much slower sweep than the timers in the main program block. For

program blocks that are inactive for large periods of time, the timers

should be programmed in such a manner as to account for this catch

up feature.

Related to this are timers that are skipped because of the use of the

JUMP instruction. Timers that are skipped will NOT catch up and will

therefore not accumulate time in the same manner as if they were

executed every sweep.

Constant sweep Constant Sweep time, when used, should be set at least 10

milliseconds greater than the normal sweep time to avoid any oversweep conditions when monitoring or performing on-line changes with

the programmer. Window completion faults will occur if the constant

sweep setting is not high enough. A consistent over sweep condition

can cause the programmer to lose communications with the RX7i.
