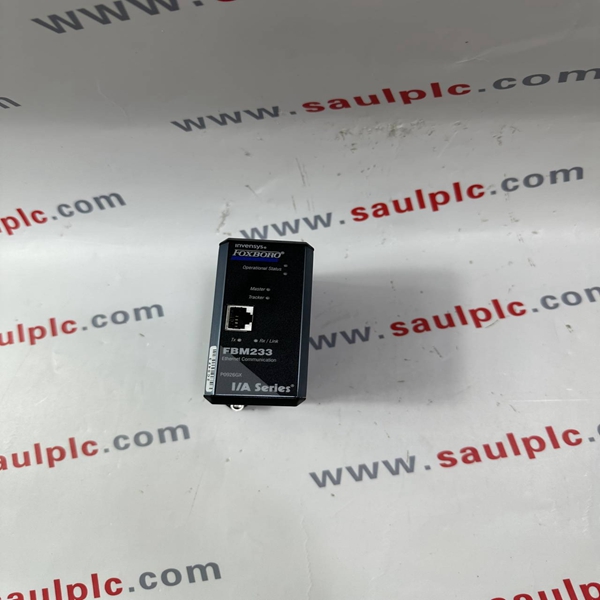

FBM233 Foxboro

Each FBM233 module has a single 10/100Mbps

copper Ethernet connection and a single RJ-45

connector on the front of the module for connectivity

to dual-ported Ethernet devices. The FBM233 is

connected to Ethernet switches or hubs in order to

communicate with one external device or up to 64

external devices.

CONFIGURATOR

The FDSI configurator sets up the FBM233 port and

XML based device configuration files. The port

configurator allows for easy setup of the

communication parameters for each port (such as,

Dynamic Host Configuration Protocol (DHCP),

IP addresses). The device configurator is not needed

for all devices, but when needed it configures device

specific and point specific considerations (such as,

scan rate, address of the data to be transferred, and

the amount of data to be transferred in one

transaction).

OPERATIONS

Each FBM233 pair can access up to 64 devices to

read or write data.

From the Foxboro Evo control station to which the

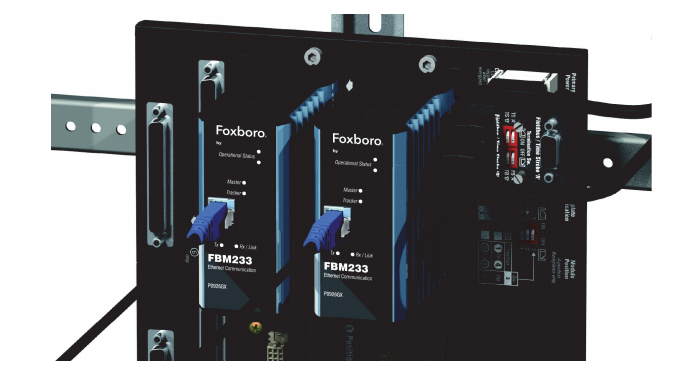

FBM233 is connected (refer to Figure 1), up to 2000

Distributed Control Interface (DCI) data connections

can be made to read or write data. Supported data

types are determined by the particular driver loaded

on the FBM233, which converts the data to the DCI

data types listed below:

4 An analog input or output value (integer or IEEE

single-precision floating point)

4 A single digital input or output value

4 Multiple (packed) digital input or output values

(packed in groups of up to 32 digital points per

connection).

Thus a Foxboro Evo control station can access up to

2000 analog I/O values, or up to 64000 digital I/O

values, or a combination of digital and analog values

using the FBM233. The frequency of access to the

FBM233 data by a control station can be as fast as

500 ms. The performance is dependant on each

device type and the layout of data in the device.
