330500-00-20 Bently NEVADA

Multiple approvals for hazardous areas certified by

Canadian Standards Association (CSA) in North

America and by LCIE in Europe.

Description

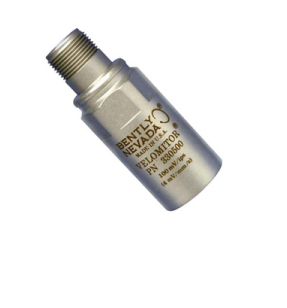

Velomitor* Piezo-velocity Sensors measure absolute (relative to free space)

bearing housing, casing, or structural vibration. Unlike moving-coil velocity

transducers, such as the Bently Nevada Seismoprobe* family of velocity

transducers, Velomitor Piezo-velocity sensors are specialized piezoelectric

accelerometers that incorporate embedded integrated electronics in a solidstate design. Because they incorporate solid-state electronics and have no

moving parts, they do not suffer from mechanical degradation and wear, and

can be mounted vertically, horizontally, or at any other angle of orientation.

Application Advisory

If you plan to make housing measurements for overall machine protection,

consider the usefulness of the measurement for each application. Most

common machine malfunctions (imbalance, misalignment, etc.) originate at

the rotor and cause an increase (or at least a change) in rotor vibration. For

any housing measurement to be effective for overall machine protection,

the machine must faithfully transmit a significant amount of rotor vibration

to the bearing housing or machine casing, or more specifically, to the

mounting location of the transducer. In addition, you should exercise care

in the physical installation of the transducer. Improper installation can

degrade the transducer’s performance, and/or generate signals that do not

represent actual machine vibration. Integration of the output to

displacement can make this worse. Exercise extreme caution if integrating

to displacement in any case.

Upon request, we can provide engineering services to determine the

appropriateness of housing measurements for the machine in question and/or

to provide installation assistance.

BENTLY    125388-01

BENTLY    125720-01

BENTLY    125736-01

BENTLY    125768-01

BENTLY    125800-01

BENTLY    125800-02

BENTLY    125840-02

BENTLY    126615-01

BENTLY    126632-01

BENTLY    126648-01

BENTLY    126648-02

BENTLY    127610-01  3500/15

BENTLY    128229-01

BENTLY    128240-01

BENTLY    128275-01

BENTLY    129478-01

BENTLY    133323-01

BENTLY    133434-01

BENTLY    133442-01

BENTLY    133819-01

BENTLY    133819-02

BENTLY    134652-01

BENTLY    135137-01

BENTLY    135145-01

BENTLY    135813-01

BENTLY    136188-02

BENTLY    136711-02

BENTLY    136719-01

BENTLY    140471-01

BENTLY    140471-02

BENTLY    146031-01

BENTLY    149992-01

BENTLY    172103-01

BENTLY    172109-01

BENTLY    1900/65A

BENTLY    3300/01

BENTLY    3300/03

BENTLY    3300/03  3300/03-01-00

BENTLY    3300/05-23-00-00

BENTLY    3300/10
