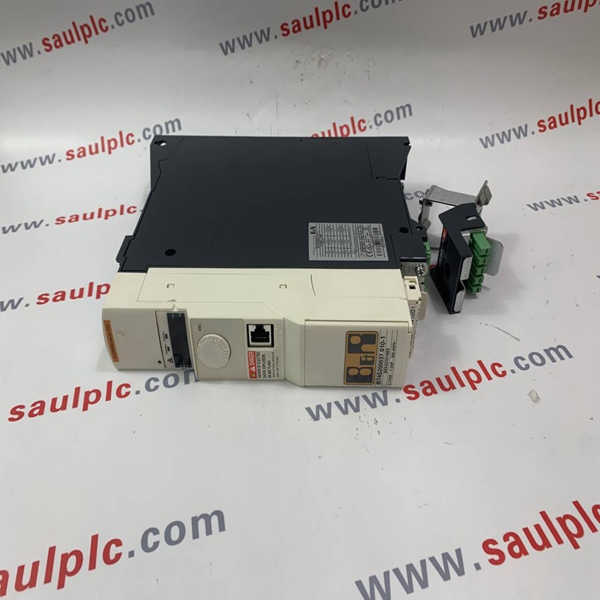

8I74S200037.010-1 B&R

8I74S200037.010-1    B&R   Automation PC Control System

1 General information

The bus controller makes it possible to connect X2X Link I/O nodes to POWERLINK. It is also possible to operate

the X2X Link cycle synchronously 1:1 or synchronous to POWERLINK using a prescaler.

POWERLINK is a standard protocol for Fast Ethernet with hard real-time properties. The Ethernet POWERLINK

Standardization Group (EPSG) ensures that the standard remains open and is continually developed: www.ethernet-powerlink.org

• POWERLINK

• I/O configuration and Firmware update via the fieldbus

• Integrated hub for efficient cabling

2 Coated modules

Coated modules are X20 modules with a protective coating for the electronics component. This coating protects

X20c modules from condensation and corrosive gases.

The modules' electronics are fully compatible with the corresponding X20 modules.
