Brand：AMCI Model number：NX1F2E
Lead Time：3-day working day Country of origin: USA
Price: Please contact us Product weight：0.22kg
Colour：new Warranty: 12 months
hipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore

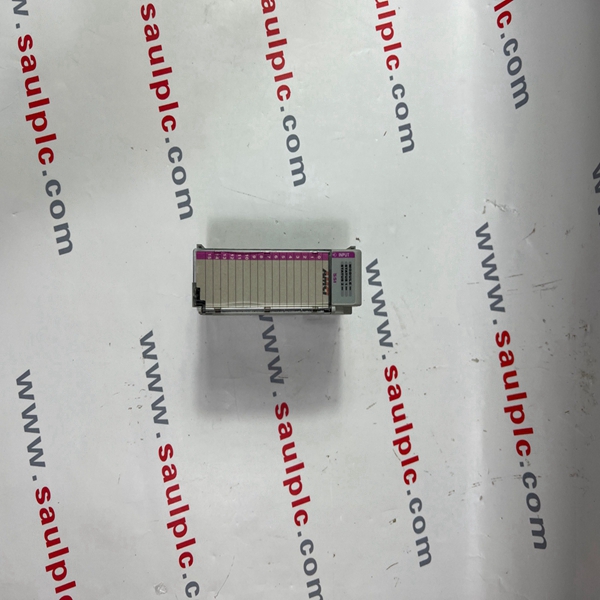

AMCI NX1F2E In dustrial control module card
1. Verify that your system’s power supply has adequate reserve current capacity. The 7662
module requires 375mA at +5Vdc.
2. The 7662 cannot be any farther than the 7th module away from the power supply.
3. Align the tongue-and-groove guides on the left side of the module with the existing rack system
and slide the module backwards.
4. When the 7662 module is in position, move the white bus connector lever on the top of the
module to the left.
5. If the 7662 module is the right most module in a system, a 1769-ECR End Cap MUST be
installed to the right of the module for the system to operate correctly.
CompactLogix Generic Configuration
1. Open RSLogix 5000 and the project in which you want to install the AMCI 7662 module.
2. Right click on I/O Configuration in the Project Tree.
3. Select New Module.
4. Select the following module type and description from the list that appears.
Type = 1769-MODULE
Description = Generic 1769 Module
5. Click on OK.
6. Enter the following module properties.
Name: Your Choice (must begin with a letter)
Description: Your Choice
Comm Format: Data-INT (The default is Input Data-INT. This must be changed to Data-INT)
Slot: location of 7662 module
7. Enter the Connection Parameters from the following table.
