PM865K01 ABB Controller module Brand new

The CPU board contains the microprocessor and RAM memory, a realtime clock, LED indicators, INITpush button, and a CompactFlash

interface.

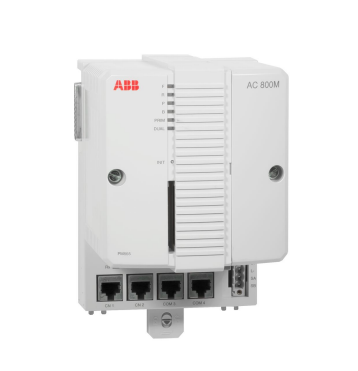

The base plate of the PM865 controller has two RJ45 Ethernet ports

(CN1, CN2) forconnection to the Control Network, and two RJ45

serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-

232C portwith modemcontrol signals,whereas the other port

(COM4) is isolated and used for the connection of a configuration

tool. The controller supports CPU redundancyfor higher availability

(CPU, CEX-Bus,communication interfaces and S800 I/O).

The high integrityfunctionalityis enabled bythe addition of a SM81x

module and the SIL certified software. This enables non-critical

control schemes to be upgraded to SIL certified schemes bythe

addition of a plug-in SM81x module, plus selection of the appropriate

software. The AC 800MHigh-Integrity also offers IEC 61508 and TÜVcertified control environmentforcombining safety and business

critical process control in one controller unitwithout sacrificing the

safetyintegrity.

Features and benefits

AC 800MHigh SIL 2 certified using PM865/SM810/SM811 or PM867/SM812

AC 800MHigh SIL 3 certified using PM865/SM811 or PM867/SM812

Supports S800 I/O High Integrity(PM865, PM866A and PM891)

The controllercan be configuredwith 800xA control builder

The controller has full EMC certification

TÜV Certified SIL 2 and SIL 3

Built-in redundant Ethernet Communication ports
