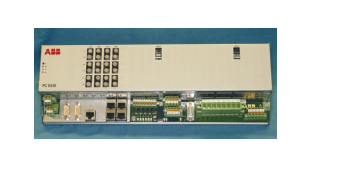

PCD235B1101 ABB

Panel PP880R PP885R PP886H

Article number 3BSE069295R1 3BSE069296R1 3BSE069297R1

Display size 7" 15.4" 15.4"

Display resolution, ratio 800 x 480 (16:9) 1280 x 800 (16:10)

Display colors TFT Color LCD with 16.7 million colors LED backlight

Brightness (cd/m2) 500 450 1000

View angle (H/V) 140/120 160/140 160/140

Dimming Maritime optimized to less than 1 cd/m2

Interaction type Resistive touch,

1 million finger touch operations

Resistive touch, 5 million finger touch operations

Processor 1.0 GHz Intel® Atom™ 1.6 GHz Intel® Atom™

Main memory 1 GB

Application memory 3,5 GB (SLC)

External storage media 1 × SD card slot (or SDHC with latest image loaded)

Realtime clock Yes

Ethernet (shielded RJ 45) 1 × 10/100 Base-T, 1 × 10/100/1000 Base-T

USB 3 × USB Host 2.0, max 500mA

Serial port 1 × RS232, 1 × RS422/485 (isolated)

Dimension W×H×D (mm) 204 × 143 × 73 410 × 286 × 83

Cut-out dimension W×H(mm) 188 × 127 394 × 270

Mounting depth mm[1] 43 (143) 76 (176)

Mounting Panel Mount and VESA 75 × 75

Net weight (kg) 1.4 4.7

Frame material, front foil Gray powder-coated aluminum, polyester Autoflex EB

Power supply 12 or 24 VDC (10-32 VDC)

Power consumption 15.8 W typical @ 24 VDC 28 W typical @ 24 VDC

Protection (front/rear) IP66, NEMA 4X / IP20

Operating temperature -30 to +70 °C

Relative operating humidity 5-85% non-condensing

Storage temperature -40 to +85 °C

Vibration/shock 4 G / 40 G

Environmental and Certification (1) CE: EN61000-6-4, EN61000-6-2

UL/cUL 61010-2-201 (replacement for UL 508), UL50E Type 4X outdoor

DNV, GL, ABS, LR, KR DNV, GL, ABS, LR

Hazardous Location: Ul/cUL 12.12.01 (UL1604 replacement) Class I Div 2, ATEX (Zone 2), IECEx Ex nA IIC Gc, IEC 60079-0

and IEC 60079-15

RoHS compliance: EN 50581:2012

WEEE compliance: DIRECTIVE/2012/19/EU
