Brand：ABB Model number： AI835A
Lead Time：3-day working day Country of origin: USA
Price: Please contact us Product weight：0.22kg
Colour：new Warranty: 12 months
hipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore

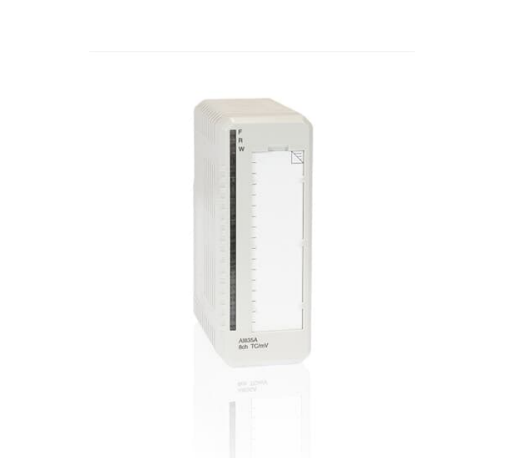

ABB AI835A Card stocking module
y™ System 800xA® hardware selector
DATA SHEET
The AI835/AI835A provides 8 differential inputchannels for
Thermocouple/mV measurements.Measurementranges configurable
perchannel are: -30 mV to +75 mV linear, or TC Types B, C, E,J, K, N, R,
S and T,for AI835A also D, L and U.
One of the channels (Channel 8) may be configured for “Cold
Junction”(ambient) temperature measurements,thus serving as CJchannel for Ch.1...7. The junction temperature may be measured
locally on theMTUs screwterminals, or on a connection unit distant
formthe device.
Alternatively, a fix junction temperature for the module may be set by
the user (as parameter) or for AI835A also fromthe application.
Channel 8 may be used in the same manner as Ch.1...7 when no CJtemperature measurementis needed.
Features and benefits
8 differential inputchannels for thermocouple/mV.
Channel 8 can be designated as the CJ-channel (4-wire Pt100 RTD)
Variety of thermocouples with the following characteristics: B, C, E,J, K, N, R, S and Tfor AI835A also D,
L and U
15 Bitresolution (A/D)
Inputs are monitored for wire-break open-circuit
