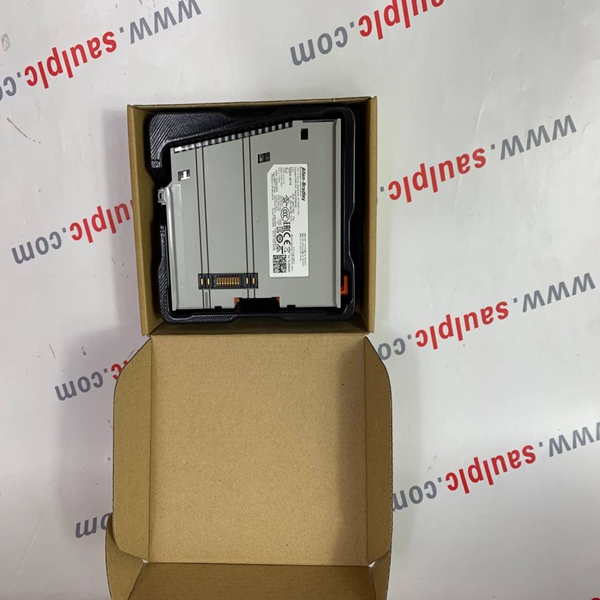

5069-IB16F Allen Bradley Compact I/O Input Module

5069-IB16F  Allen Bradley Compact I/O Input Module

For more information on electrical safety considerations, see Electrical

Safety Considerations on page 4 and the publications that are listed on

page 20.

Set the Network Internet Protocol (IP) Address

Compact 5000 I/O EtherNet/IP adapters ship DHCP-enabled and

with their rotary switches set to 000.

If the network uses 192.168.1.x, we recommend that you use the rotary

switches to set the last octet of network IP address. Valid numbers

range from 001…254.

To use the rotary switches to set the IP address, turn the switches to the

appropriate numbers before you install the adapter.

• 5069-AEN2TR- The bottom switch represents the first digit

in the octet, the middle switch represents the second digit, and

the top switch represents the third digit.

• 5069-AENTR and 5069-AENTRK - The left-most switch

represents the first digit in the octet, the middle switch

represents the second digit, and the right-most switch

represents the third digit.

5069-AEN2TR Adapter Rotary Switches

5069-AENTR and 5069-AENTRK Adapter Rotary Switches

At powerup, the adapter reads the rotary switches to determine if they

are set to a valid number for the last octet of the IP address. If the

settings are a valid number, these conditions result:

• IP address = 192.168.1.xxx (where xxx represents the switch

settings)

• Subnet mask = 255.255.255.0

• Gateway address = 0.0.0.0

• The adapter does not have an assigned host name, nor does it

use any Domain Name System

If the network does not use 192.168.1.x, do not change the switch

positions before you install the adapter. After you install and power up

the adapter, you can use the following to set the network IP address:

• DHCP server

• BOOTP DHCP EtherNet/IP Commissioning Tool - We

recommend that you use version 3.02.00 or later.

• RSLinx Classic software

For more information on how to use software to set the IP address, see

the EtherNet/IP Communication Modules in Logix 5000 Control

Systems User Manual, publication ENET-U
