Brand：Allen-Bradley Model number：2711P-T7C22D9P
Colour：new Warranty: 12 months
Lead Time：3-day working day Country of origin: USA
Price: Please contact us Product weight：1.7kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service

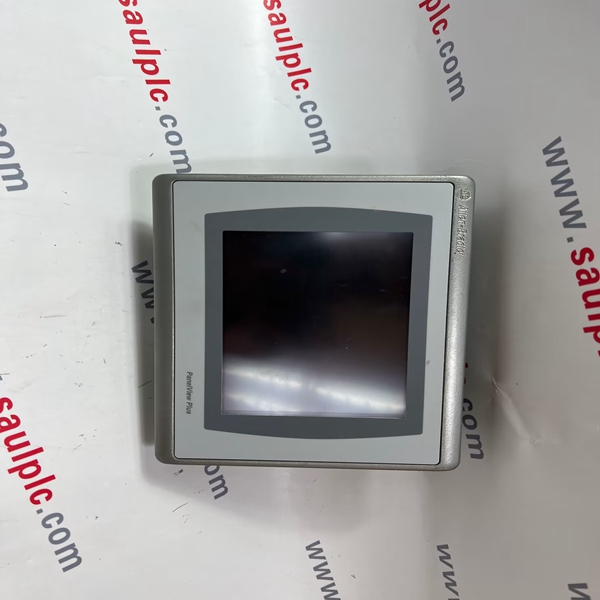

2711P-T7C22D9P Allen-Bradley Operator Interface
PanelView Plus 7 Performance Terminals
Features include the following:
• FactoryTalk® View Machine Edition software, version 8.1, provides a familiar environment for creating HMI
applications
• Windows CE operating system with desktop access for configuration and third-party applications
• Connection to ControlLogix or CompactLogix 5370 controllers
• Ethernet communication that can support Device Level Ring (DLR), linear, or star network topologies
• Web browser, Microsoft file viewers, text editor, PDF viewer, remote desktop connection, and media player on the
terminal desktop
Environmental Specifications
This table lists environmental specifications for the PanelView Plus 7 Performance terminals.
Attribute Value
Temperature, operating (1)
(1) The 19-inch terminals (2711P-T19C22D9P, 2711P-T19C22D9P-B, 2711P-T19C22A9P, and 2711P-T19C22A9P-B) are rated up to 50 °C (122 °F) operating temperature.
0…55 °C (32…131 °F)
Temperature, nonoperating -25…+70 °C (-13…+158 °F)
Heat dissipation (2)
(2) Typical BTU measurements were taken at 25 °C (77 °F).
7-in. DC (touch, and touch with keypad), 51 BTU (typical)
7-in. AC (touch, and touch with keypad), 53 BTU (typical)
9-in. DC, 55 BTU (typical)
9-in. AC, 58 BTU (typical)
10-in. DC (touch, and touch with keypad), 51 BTU (typical)
10-in. AC (touch, and touch with keypad), 56 BTU (typical)
12-in. DC, 60 BTU (typical)
12-in. AC, 67 BTU (typical)
15-in. DC (touch, and touch with keypad), 61 BTU (typical)
15-in. AC (touch, and touch with keypad), 68 BTU (typical)
19-in. DC, 114 BTU (typical)
19-in. AC, 119 BTU (typical)
Altitude, operating 2000M
Relative humidity 5…95% without condensation
Vibration 0.012 pk-pk, 10…57 Hz
2 g peak at 57…500 Hz (3)
(3) The 15-inch and 19-inch terminals (2711P-T15C22D9P, 2711P-T15C22D9P-B, 2711P-T15C22A9P, 2711P-T15C22A9P-B, 2711P-B15C22D9P, 2711P-B15C22D9P-B,
2711P-B15C22A9P, 2711P-B15C22A9P-B, 2711P-T19C22D9P, 2711P-T19C22D9P-B, 2711P-T19C22A9P, 2711P-T19C22A9P-B) are rated to: 0.006 in. pk-pk, 10...57 Hz, 1 g p
