1783-ETAP1F Allen-Bradley Prevent Electrostatic Discharge
Brand：Allen-Bradley Model number：1783-ETAP1F
Colour：new Warranty: 12 months
Lead Time：3-day working day Country of origin: USA
Price: Please contact us Product weight：0.195kg
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
1783-ETAP1F Allen-Bradley 3-Port Ethernet/IP
ATTENTION: This equipment is sensitive to electrostatic discharge, which can cause internal damage and affect normal operation. Follow these
guidelines when you handle this equipment:
• Touch a grounded object to discharge potential static.
• Wear an approved grounding wriststrap.
• Do not touch connectors or pins on component boards.
• Do not touch circuit components inside the equipment.
• Use a static-safe workstation, if available.
• Store the equipment in appropriate static-safe packaging when not in use.

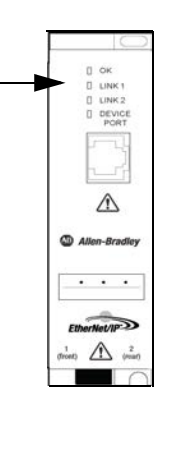

1783-ETAP Status Indicators
1783-ETAP1F, 1783-ETAP2F Status Indicators
Indicator Status Description
OK
Off Tap is not powered.
Flashing green Tap is not configured.
Steady green Tap is powered, configured, and operating correctly.
Flashing red Recoverable fault, such as duplicate IP address or update in progress, is detected.
Steady red Unrecoverable fault detected.
LINK1, LINK2
Off
One of these conditions exists:
• No link.
• Port administratively disabled.
• Port that is disabled because of rapid ring fault condition, and this tap is the active ring supervisor (LINK 2).
• Ring network has encountered a rare, partial network fault, and this tap is the active supervisor (LINK 2).
Green
One of these conditions exists:
• A 100 Mbps (full or half-duplex) link exists.
• The ring network is operating normally and this tap is the active supervisor (LINK 2).
Flashing green A 100 Mbps link exists and there is activity.
Steady yellow
One of these conditions exists:
• A 10 Mbps (full or half-duplex) link exists.
• Ring network is operating normally, and this tap is the active supervisor (LINK 2).
Flashing
yellow A 10 Mbps link exists and there is activity.
Indicator Status Description
OK
Off Tap is not powered.
Flashing
green Tap is not configured.
Steady green Tap is powered, configured, and operating correctly.
Flashing red Recoverable fault, such as duplicate IP address detected, or an update in progress, is detected.
Steady red Unrecoverable fault detected.
LINK 1,
LINK 2
Off
One of these conditions exists:
• No link.
• Port administratively disabled.
• Ring network has encountered a rare, partial network fault, or rapid ring fault condition, and this tap is the
active supervisor (LINK 2).
Steady green
One of these conditions exists:
• RJ45 port: a 100 Mbps (full or half-duplex) link exists, and there is no activity.
• Fiber port: a 100 Mbps (full-duplex) link exists, and there is no activity.
• Ring network is operating normally, and this tap is the active supervisor (LINK 2).
Flashing
green A 100 Mbps link exists and there is activity.
Steady yellow
RJ45 port only. One of these conditions exists:
• A 10 Mbps (full or half-duplex) link exists.
• Ring network is operating normally, and this tap is the active supervisor (LINK 2).
Flashing
yellow RJ45 port only. A 10 Mbps link exists and there is activity
