1756-OF8 Allen-Bradley

The module is designed to support Removal and

Insertion Under Power (RIUP). However, when

you remove or insert an RTB with field-side power

applied, unintended machine motion or loss of

process control can occur. Exercise extreme

caution when using this feature.

Key the Removable Terminal Block/Interface Module

Wedge-shaped keying tabs and U-shaped keying bands came with

your RTB to prevent connecting the wrong wires to your module.

Key positions on the module that correspond to unkeyed positions

on the RTB. For example, if you key the first position on the module,

leave the first position on the RTB unkeyed.

Reposition the tabs to rekey future module applications.

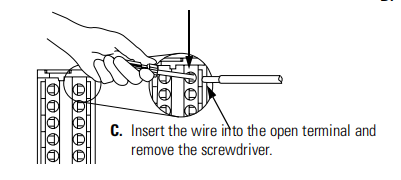

Wire the Removable Terminal Block

Wire the RTB with a 5/16 inch (8mm) maximum flat-bladed

screwdriver before installing it onto the module.

Shielded cable is required when using this module. We recommend

using Belden 8761 cable to wire the RTB. The RTB terminations can

accommodate 14-22 gauge shielded wire.

Connect grounded end of the cable

1. Ground the drain wire.

IMPORTANT We recommend grounding the drain wire at the

field-side. If you cannot ground at the field-side, ground

at an earth ground on the chassis as shown.
