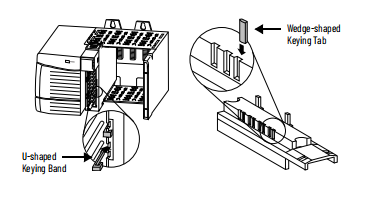

1756-IN16, 1756-IN16K, 1756-ON8, 1756-ON8K, 1756-OA8, 1756-OA8K, 1756-0A8D

Attribute 1756-IN16, 1756-IN16K 1756-ON8, 1756-ON8K 1756-OA8, 1756-OA8K 1756-OA8D

Temperature, operating

• IEC 60068-2-1 (Test Ae, Operating Cold)

• IEC 60068-2-2 (Test Be, Operating Dry Heat)

• IEC 60068-2-14 (Test Nb, Operating Thermal Shock)

0 °C ≤ Ta ≤ 60 °C (32 °F ≤ Ta ≤ 140 °F)

Corrosive Atmosphere(1)

ASTM B845-97 Method H Accelerated Test (20-Day Exposure)

(1) Only applicable to modules that end with a “K” or “XT”.

Severity Level G3 per ANSI/ISA 71.04-2013, Airborne Contaminants - Gases

Severity Level CX (2)per IEC 60721-3-3:2019, Chemically Active Substances

(2) Up to 9.6 microns per year, corrosion rate of copper.

Temperature, surrounding air, max 60 °C (140 °F)

Enclosure type rating None (open-style)

Voltage and current ratings

Backplane • 5.1V DC, 135 mA

• 24V DC, 2 mA

• 5.1V DC, 200 mA

• 24V DC, 2 mA

• 5.1V DC, 200 mA

• 24V DC, 2 mA

• 5.1V DC, 175 mA

• 24V DC, 250 mA

Inputs 10…30V AC, 50/60 Hz 25 mA max — — —

Output —

10…30V AC, 50/60Hz,

2 A pilot duty, Current per output

5 A/4 A 30 °C (86 °F)/60 °C (140 °F),

Current per module, max

120/240V AC, 50/60 Hz,

2 A pilot duty

120V AC, 50/60 Hz,

1 A, 8 A surge

Isolation voltage • 250V (continuous), basic insulation type, channels to backplane

• No isolation between individual channels

• 250V (continuous), basic

insulation type, outputs

to backplane

• No isolation between

individual outputs

• 125V (continuous), basic

insulation type, outputs to

backplane

• No isolation between

individual outputs

Wire size

1756-TBNH

• Single wire connection: 0.33…2.1 mm2

 (22…14 AWG) solid or

stranded shielded copper wire rated at 105 °C (221 °F) or greater,

1.2 mm (3/64 in.) insulation max

• Double wire connection: 0.33…1.3 mm2

 (22…16 AWG) solid or

stranded copper wire rated at 105 °C (221 °F) or greater, 1.2 mm (3/

64 in.) insulation max

1756-TBSH

• Single wire connection: 0.33…2.1 mm2

 (22…14 AWG) solid or

stranded shielded copper wire rated at 105 °C (221 °F) or greater,

1.2 mm (3/64 in.) insulation max

0.33…2.1 mm2

 (22…14 AWG) solid or stranded copper wire

rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.)

insulation max

Wiring category(3)

(3) Use this Conductor Category information for planning conductor routing. See Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1.

1 - on signal ports

Terminal block torque 1756-TBNH

0.36 N•m (12 lb•in)

North American temp code T3C T4A

ATEX/IECEX temperature code T3 T4 — —

1756-OA16, 1756-OA16K

Attribute 1756-OA16, 1756-OA16K

Temperature, operating

IEC 60068-2-1 (Test Ae, Operating Cold),

IEC 60068-2-2 (Test Be, Operating Dry Heat),

IEC 60068-2-14 (Test Nb, Operating Thermal Shock)

0…60 °C (32…140 °F)

Corrosive Atmosphere(1)

ASTM B845-97 Method H Accelerated Test (20-Day Exposure)

(1) Only applicable to modules that end with a “K” or “XT”.

Severity Level G3 per ANSI/ISA 71.04-2013, Airborne Contaminants - Gases

Severity Level CX (2)per IEC 60721-3-3:2019, Chemically Active Substances

(2) Up to 9.6 microns per year, corrosion rate of copper.

Temperature, surrounding air, max 60 °C (140 °F)

Enclosure type rating None (open style)

Voltage and current ratings

Backplane • 5.1V DC, 400 mA

• 24V DC, 2 mA

Outputs 120/240V AC, 50/60 Hz, 0.5 A pilot duty

Isolation voltage 250V (continuous), basic insulation type, outputs to backplane

Wire size 0.33…2.1 mm2 (22…14 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or greater, 1.2 mm2

 (3/64 in.) insulation max

Wiring category(3)

(3) Use this Conductor Category information for planning conductor routing. See Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1.

1 - on signal ports

Terminal block torque 1756-TBNH

0.36 N•m (12 lb•in)

North American temperature code T4
