Brand：Allen-Bradley Model number：1489-M1C030
Colour：new Warranty: 12 months
Lead Time：3-day working day Country of origin: USA
Price: Please contact us Product weight：0.12kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
1489-M1C030 Allen-Bradley Miniature Circuit Breaker
Bulletin 1489-M thermal magnetic Circuit Breakers are approved for branch circuit
protection in the United States and Canada, and are certified as Miniature Circuit Breakers
for IEC applications.
These branch protectors are compatible with many accessories to meet diverse
application needs, including UL 508 Listed bus bars for convenience in panel assembly,
auxiliary contacts, signal contacts and shunt trips for versatility, and lock out attachments
for safety during maintenance.
Current limiting
Fast breaking time
High rated voltage
Superior shock and vibration resistance to help prevent nuisance tripping
Dual terminals allow the connection of two wires, or both a wire and bus bar (self
declared)
Terminal design helps prevent wiring misses by directing wires into the terminal
openings, even while tightening
Reversible line and load connections
Single and multi-pole toggle mount lock out attachments available for Lock Out Tag
Out (LOTO)
RoHS compliant and fully-recyclable device
Suitable for extreme ambient conditions

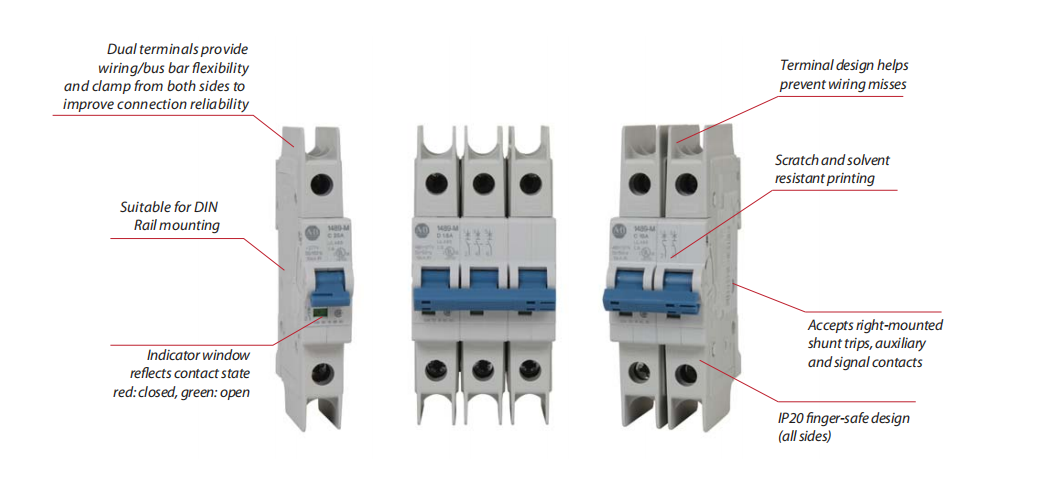

IP20 finger-safe design
(all sides)
Suitable for DIN
Rail mounting
Accepts right-mounted
shunt trips, auxiliary
and signal contacts
Terminal design helps
prevent wiring misses
Dual terminals provide
wiring/bus bar flexibility
and clamp from both sides to
improve connection reliability
Indicator window
reflects contact state
red: closed, green: open
Scratch and solvent
resistant printing
1489-M Circuit Breakers
Rated Voltage UL/CSA: Max. 480Y/277V AC
IEC: Ue 230/400V AC
Interrupting
Capacity
UL/CSA: 10 kA
IEC: 15 kA
Current Ratings 0.5...63 A
Poles 1, 2, 3
Trip Curves C, D
Standards
Compliance
UL 489
CSA C22.2 No. 5.1
EN 60947-2
GB 14048.2
Certifications
UL Listed, File No. E197878
CSA Certified
CE Marked
VDE Certified
CCC Certified
RoHS Comp
:
Known Anomalies
No known anomalies have been identified with this revision.
